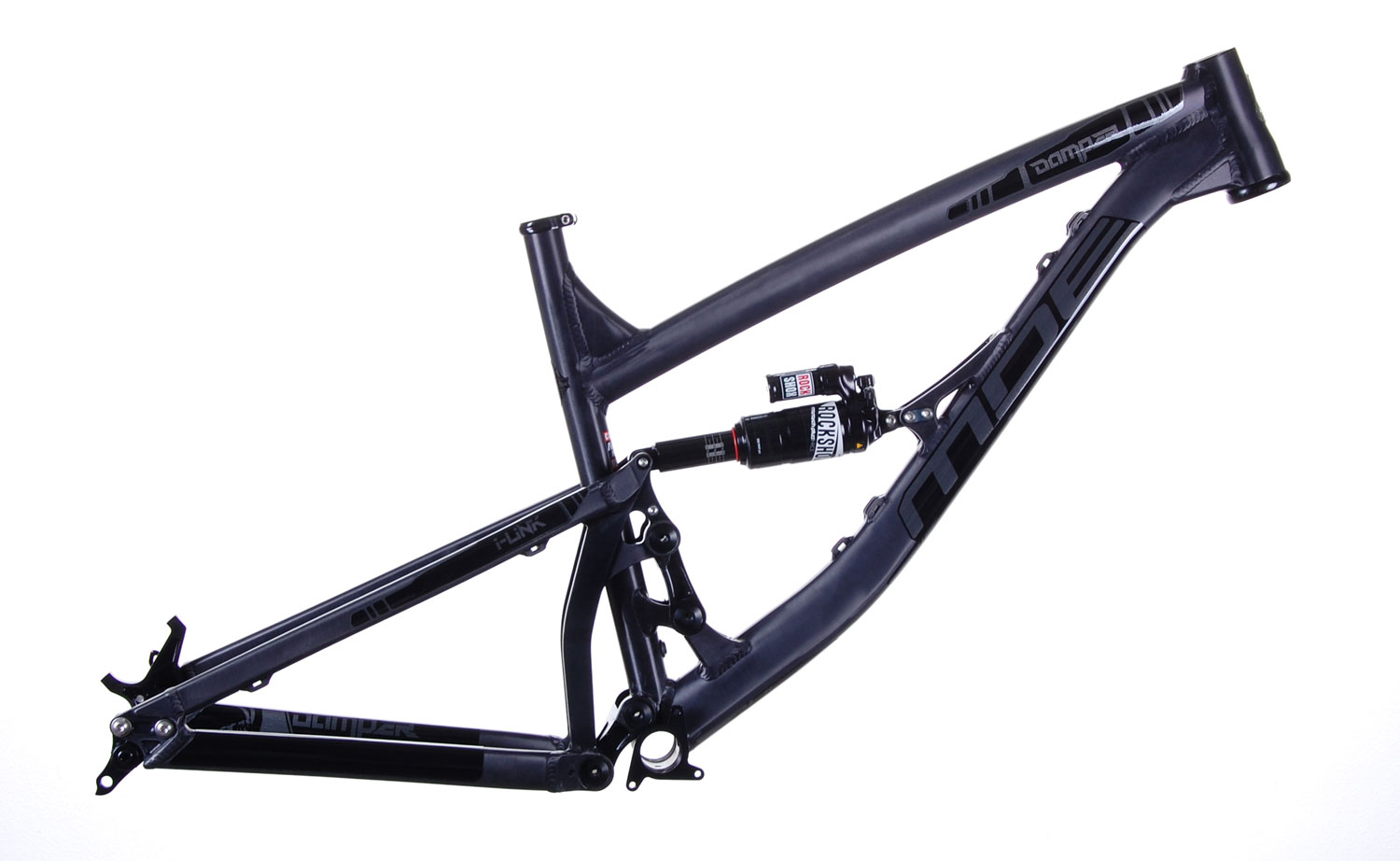

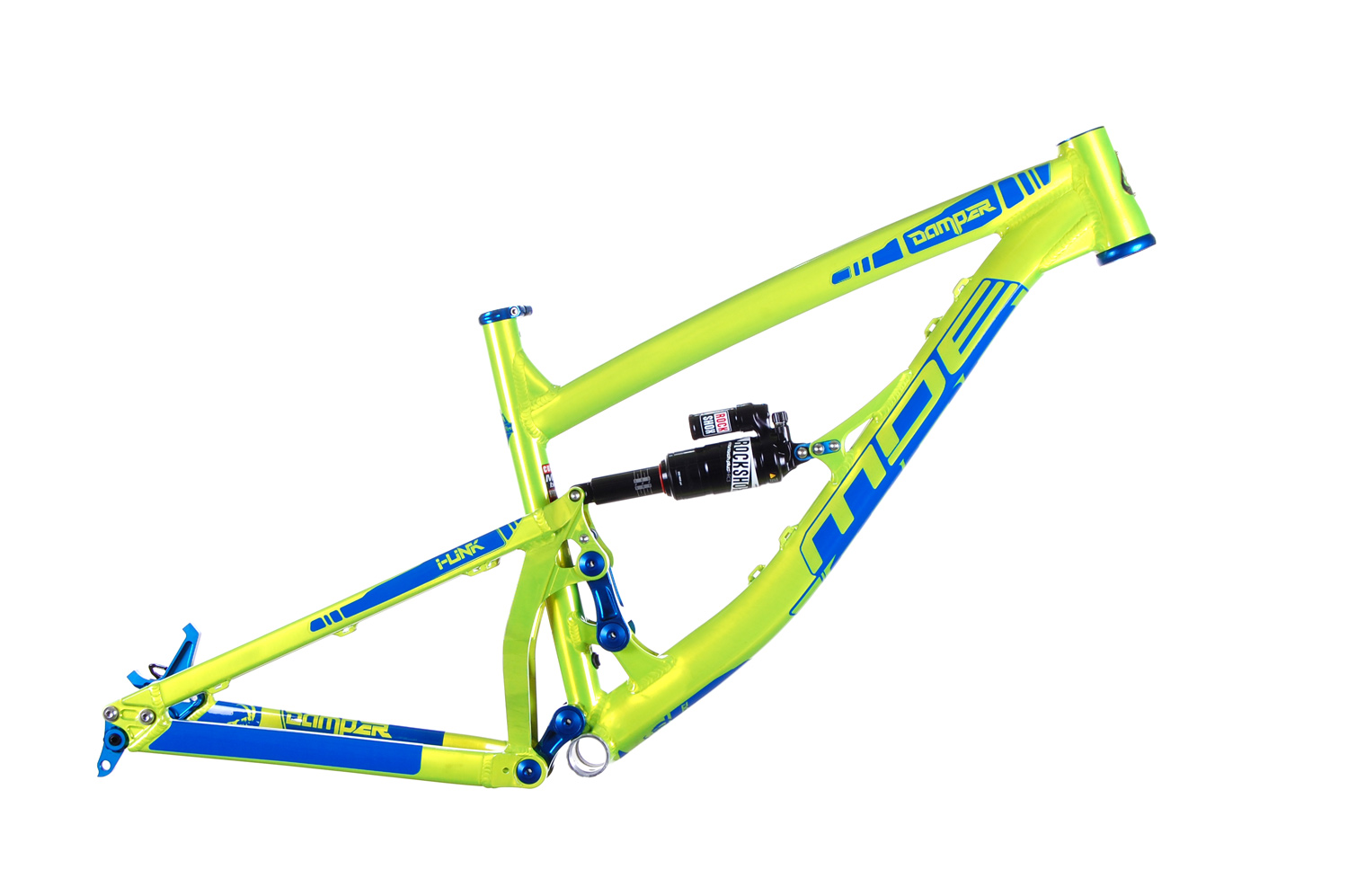

DAMPER 27.5
ENDURO - 160MM – 27.5″
DISCONTINUED FRAME
Our frames are made by hand one by one in our workshop. We can offer many colors customization. We can do them tailor made (Rider tuned geometry).
Delivery within 60 days from order confirmation.
(General description of the service and Shipping cost)
OVERVIEW
TYPE: AGGRESSIVE AM / ENDURO / BIKE PARK
WHEELS SIZE: 27.5″
FRAME MATERIAL: 7005 T6 ALLOY HYDROFORMING

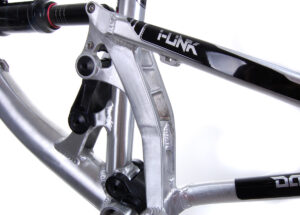

SYSTEM: I-LINK

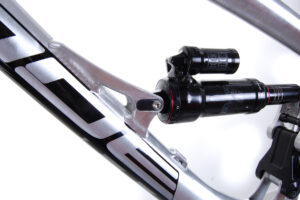

STD REAR SHOX: ROCK SHOCK SUPER DELUXE DEBONAIR 216X63MM
WHEEL TRAVEL: 160MM (6,3″)
BB SHELL: 73MM (ISCG 05 OR 03 REPLACEABLE BRACKET)
DROPOUTS: 148X12MM (QR OR BOLT AXLE)
WEIGHT: 3,10KG (SIZE M W/O SHOX)
SIZE: S, M, L, XL
FEATURES EXTRA: COMPATIBILITY WITH 216X63MM OR 230X65MM
REVIEWS:
GEOMETRY
Geometry based on 555mm axle-to-crown (160mm Fork)
Shox: Rock Shox Monarch Plus 216x63mm
Tires: 27.5″x2.50
BB Drop: 10mm
| SIZE | S | M | L | XL |
| ST | 390 | 430 | 460 | 490 |
| TTR | 560 | 585 | 610 | 637 |
| REACH | 420 | 445 | 470 | 495 |
| STACK | 602 | 604 | 608 | 614 |
| SA | 76° | 76° | 76° | 76° |
| HA | 65° | 65° | 65° | 65° |
| HT | 107 | 110 | 115 | 120 |
| BBH | 344 | 344 | 344 | 344 |
| CS | 430 | 430 | 430 | 430 |
| WB | 1168 | 1194 | 1219 | 1245 |
| RIDER HT | 150-165cm | 165-175cm | 175-185cm | 185-200cm |
FRAME SPECS
MAX FORK TRAVEL: 180MMMM
REAR SHOCK SIZE: 216MM X 63MM OR 230X65MM
SHOCK HARDWARE: 22MM X 8MM, 40MM X 8MM
REAR TRAVEL: 160MM
HEADSET (TOP): 44MM ZERO STACK
HEADSET (BOTTOM): 49MM EXTERNAL CUP
BB SHELL: 73MM BSA THREADED
REAR BRAKE MOUNT: 160MM POST MOUNT
REAR AXLE:148X12MM (SRAM MAXLE STD)
FRONT DERAILLEUR: 34.9MM TOP SWING, NEW FRONT DIRECT PULL (SHIMANO)
ISCG TABS : ISCG 03 AND 05 (1.5MM OFFSET) REPLACEABLE TAB
SEATPOST DIAMETER: 30.9MM
SEAT CLAMP: 34.9MM
MAX CHAINRING SIZE: 34T SINGLE OR 36-24 DOUBLE (ONLY BOOST CRANKSET)
MAX TIRE SIZE: 27.5×2.50
Classification for Bicycle Usage
This category also covers the requirements of categories 1-3. In addition it includes use on very harsh, obstacle-scattered terrain with steep gradients and consequently higher speeds. This category is not suitable for regular use in bike parks and the “North Shore” sections. Due to frequent stress, these bikes should be inspected after each ride. Full suspension bikes with mid-level travel are typical in this category.
Max rider weight (clothing and protections included): 110 kg
A description of all categories and more information about intended use can be found here.
