CARVE 27.5
AM/TRAIL - 140MM – 27.5″
DISCONTINUED FRAME

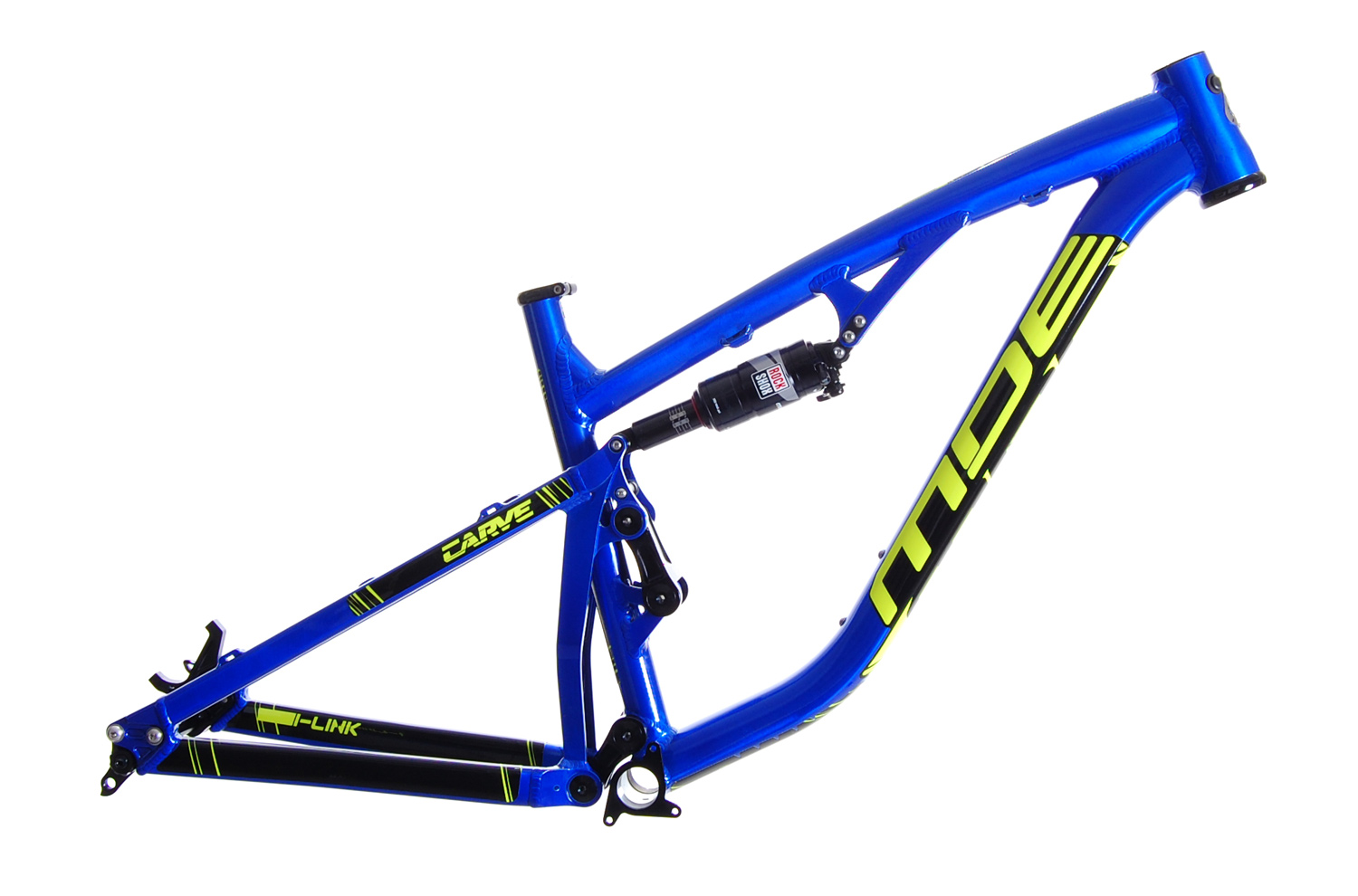

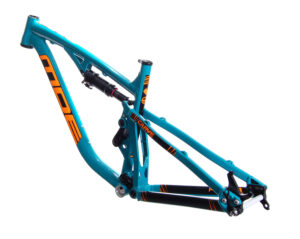

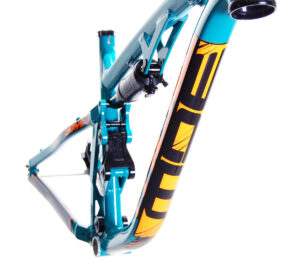

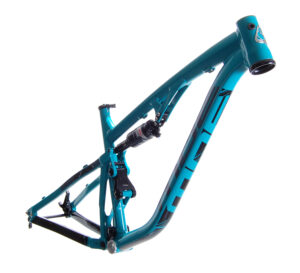

Our frames are made by hand one by one in our workshop. We can offer many colors customization. We can do them tailor made (Rider tuned geometry).
Delivery within 60 days from order confirmation.
(General description of the service and Shipping cost)

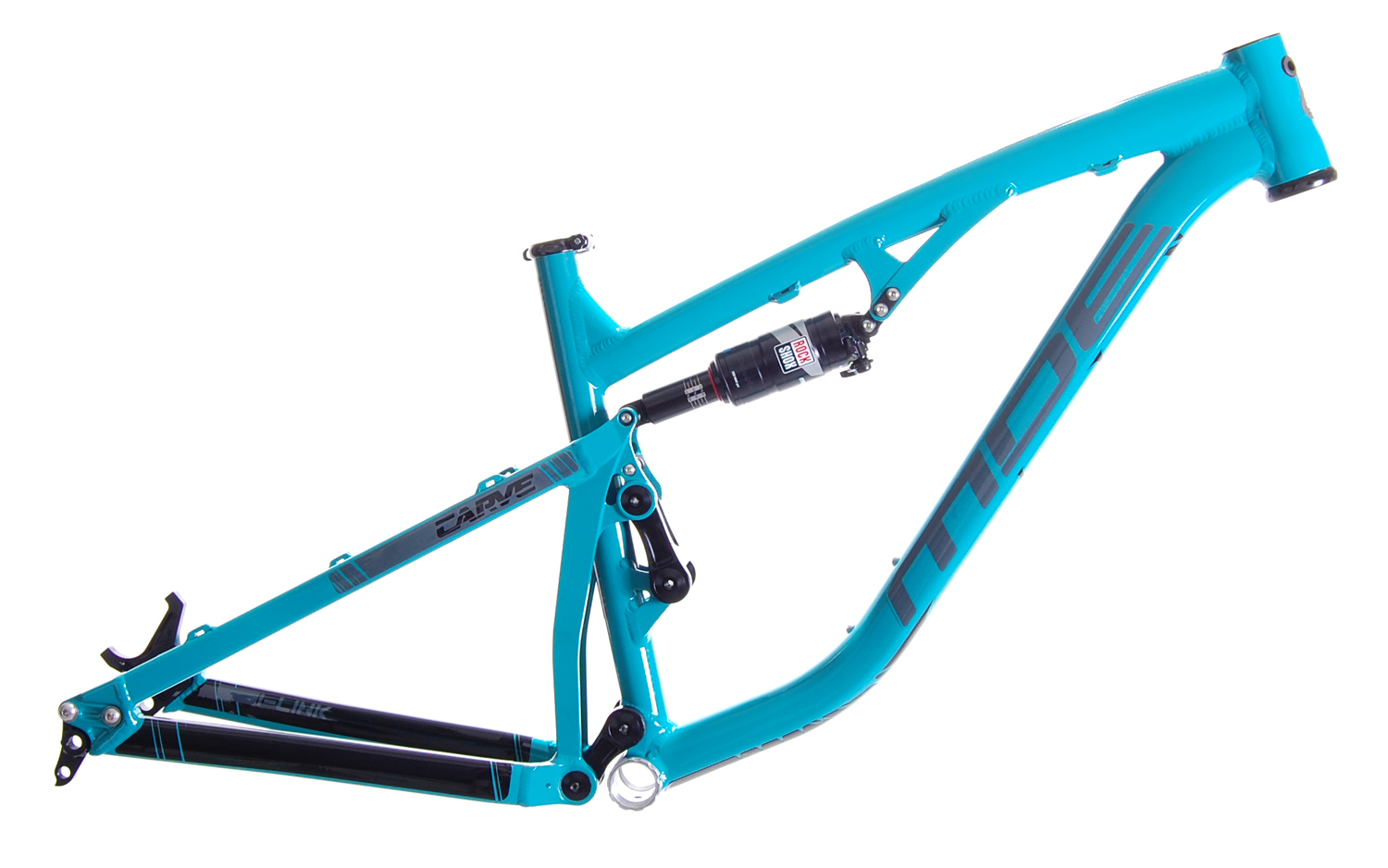

OVERVIEW
TYPE: AGGRESSIVE TRAIL / AM
WHEELS SIZE: 27.5″
FRAME MATERIAL:7005 T6 ALLOY HYDROFORMING
SYSTEM: I-LINK

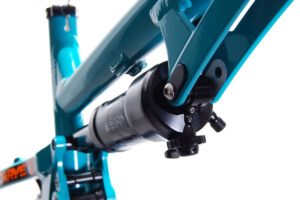

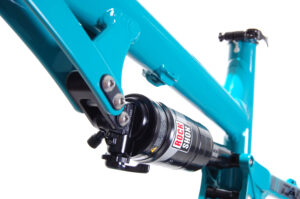

STD REAR SHOX: ROCK SHOX DELUXE RT DEBONAIR 210X55MM OR MONARCH RT3 DEBONAIR 200X57MM
WHEEL TRAVEL: 140MM (5,5″)

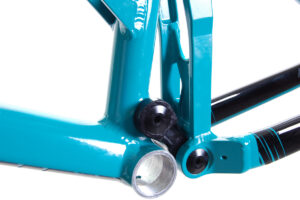

BB: 73MM (ISCG 05REPLACEABLE BRACKET)

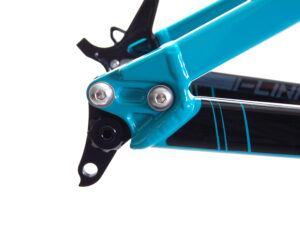

DROPOUTS: 148X12MM (QR OR BOLT AXLE)
WEIGHT: 2,90KG (SIZE M W/O SHOX)
SIZE: S, M, L, XL
FEATURES EXTRA: FAST (FIT ALL STANDARD TECNOLOGY) COMPATIBILITY WITH ALL THE MTB STANDARD: 200X57MM (STD) OR 210X57MM (METRIC) SHOCKS, 27.5″, 29″ OR 650B+ WHEELS, 135X10MM, 142X12MM, 148X12MM AND 150X12MM, SINGLE RING OR DOUBLE RING, ISCG 05 OR 03
REVIEWS:
CARVE TESTED ON MTB-MAG.COM
TEST CARVE SU MTB-MAG.COM (IN ITALIANO)
GEOMETRY
Geometry based on 552mm axle-to-crown (160mm 27.5″ Fork)
Shox: Rock Shox Deluxe RT3 210x55mm
Tires: 27.5″x2.35
| SIZE | S | M | L | XL |
| ST | 390 | 430 | 460 | 490 |
| TTR | 565 | 590 | 615 | 640 |
| REACH | 414 | 440 | 465 | 488 |
| STACK | 592 | 595 | 599 | 604 |
| SA | 75.8° | 75.8° | 75.8° | 75.8° |
| HA | 66.3° | 66.3° | 66.3° | 66.3° |
| HT | 107 | 110 | 115 | 120 |
| BBH | 352 | 352 | 352 | 352 |
| CS | 430 | 430 | 430 | 430 |
| WB | 1145 | 1171 | 1196 | 1222 |
| RIDER HT | 150-165cm | 165-175cm | 175-185cm | 185-200cm |
FRAME SPECS
MAX FORK TRAVEL: 160MM (27.5″), 150MM (29)
REAR SHOCK SIZE: 200MM X 57MM OR 210X55MM
SHOCK HARDWARE: 22MM X 8MM, 40MM X 8MM
REAR TRAVEL: 140MM
HEADSET (TOP): 44MM ZERO STACK
HEADSET (BOTTOM): 49MM EXTERNAL CUP
BB SHELL: 73MM BSA THREADED
REAR BRAKE MOUNT: 160MM POST MOUNT
REAR AXLE:148X12MM (SRAM MAXLE STD)
FRONT DERAILLEUR: 34.9MM TOP SWING, NEW FRONT DIRECT PULL (SHIMANO)
ISCG TABS : ISCG 03 AND 05 (1.5MM OFFSET) REPLACEABLE TAB

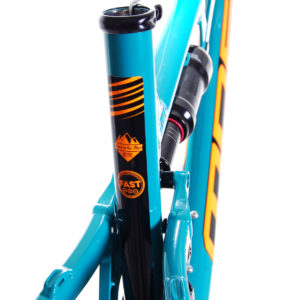

SEATPOST DIAMETER: 30.9MM
SEAT CLAMP: 34.9MM
MAX CHAINRING SIZE: 34T SINGLE OR 36-24 DOUBLE (ONLY BOOST CRANKSET)
MAX TIRE SIZE: 27.5”(650B)X2.5 (W +0 DROPOUTS)
