BOLDER 29
AM/TRAIL - 120-130MM – 29″/650B+
DISCONTINUED FRAME
Our frames are made by hand one by one in our workshop. We can offer many colors customization. We can do them tailor made (Rider tuned geometry).
Delivery within 60 days from order confirmation.
(General description of the service and Shipping cost)
OVERVIEW
TYPE: TRAIL BIKING / AM
WHEELS SIZE: 29″/650B+
FRAME MATERIAL:7005 T6 ALLOY HYDROFORMING
SYSTEM: MONOPIVOT
STD REAR SHOX:ROCK SHOX MONARCH RL 190X51MM
WHEEL TRAVEL: 120MM OR 140MM (4.7 OR 5,5″)
BB: 73MM BSA
DROPOUTS: 142X12MM OR 148X12MM (QR OR BOLT AXLE)
WEIGHT: 2,70KG (SIZE M W/O SHOX)
SIZE: S, M, L, XL

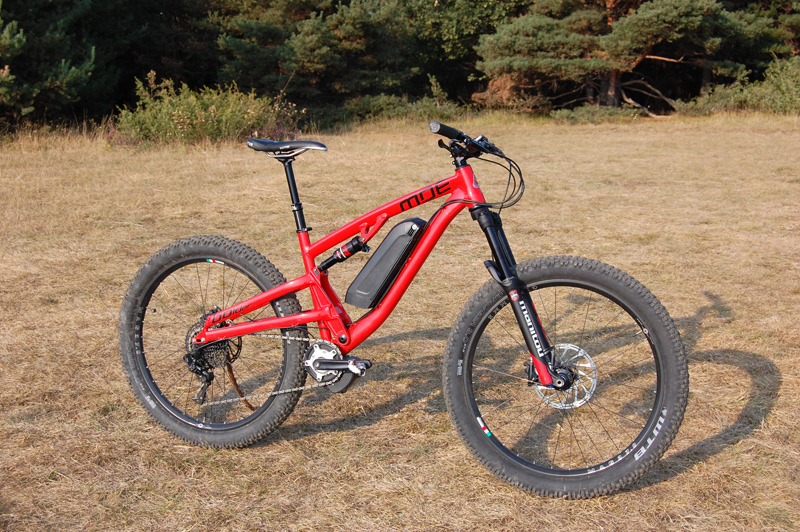

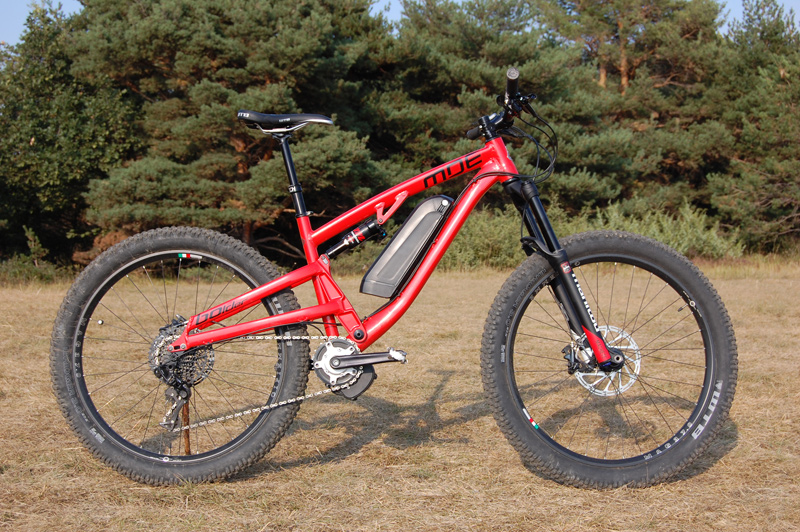

FEATURES EXTRA: READY FOR FUTURE-BIKE E-BIKE CONVERSION KIT
(SEE HERE)
GEOMETRY
Geometry based on 545mm axle-to-crown (140mm 29″/650b+
Fork)
Shox: Rock Shox Monarch RL 190x51mm
w 27.5×3.00 tires
| SIZE | SMALL | MEDIUM | LARGE |
| ST | 400 | 450 | 500 |
| TTR | 570 | 600 | 630 |
| REACH | 420 | 450 | 480 |
| STACK | 599 | 599 | 599 |
| SA | 75.8° | 75.8° | 75.8° |
| HA | 67° | 67° | 67° |
| HT | 120 | 120 | 120 |
| BBH | 350 | 350 | 350 |
| CS | 439 | 439 | 439 |
| WB | 1150 | 1180 | 1210 |
| RIDER HT | 155-170cm | 170-180cm | 180-195cm |
FRAME SPECS
MAX FORK TRAVEL: 150MM

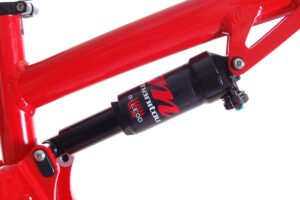

REAR SHOCK SIZE: 190MM X 51
SHOCK HARDWARE: 22MM X 8MM, 50MM X 8MM
REAR TRAVEL: 120-130MM
HEADSET (TOP): 44MM ZERO STACK
HEADSET (BOTTOM): 49MM EXTERNAL CUP
BB SHELL: 73MM BSA THREADED
REAR BRAKE MOUNT: 160MM POST MOUNT

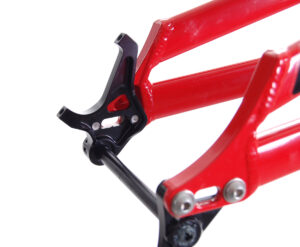

REAR AXLE: 142X12MM OR 148X12MM (SRAM MAXLE STD)
FRONT DERAILLEUR: 34.9MM TOP SWING, NEW FRONT DIRECT PULL (SHIMANO)
ISCG TABS : NONE
SEATPOST DIAMETER: 30.9MM
SEAT CLAMP: 34.9MM
MAX CHAINRING SIZE: 38T SINGLE OR 26/38 DOUBLE
MAX TIRE SIZE: 27.5”(650B)X3.0 OR 29″X2.5
