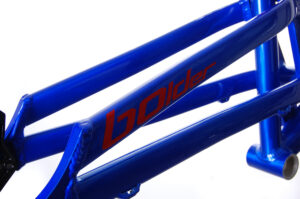

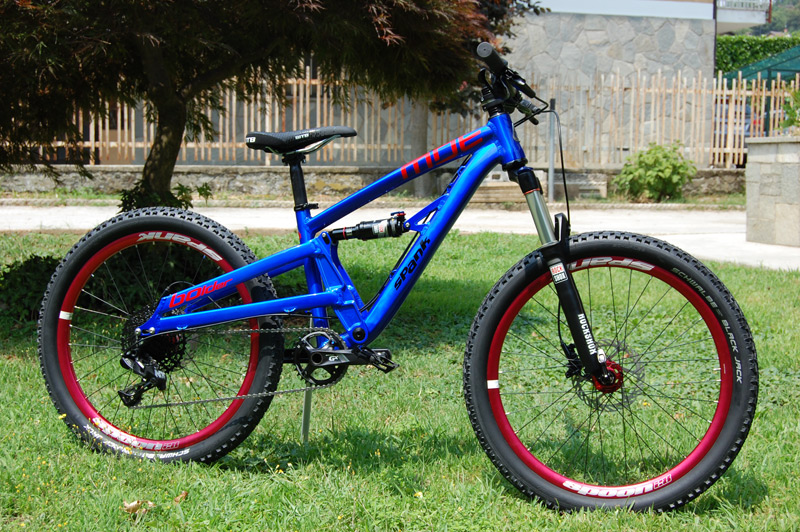

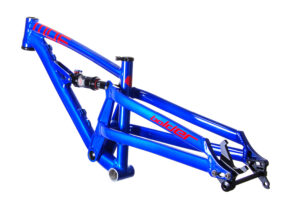

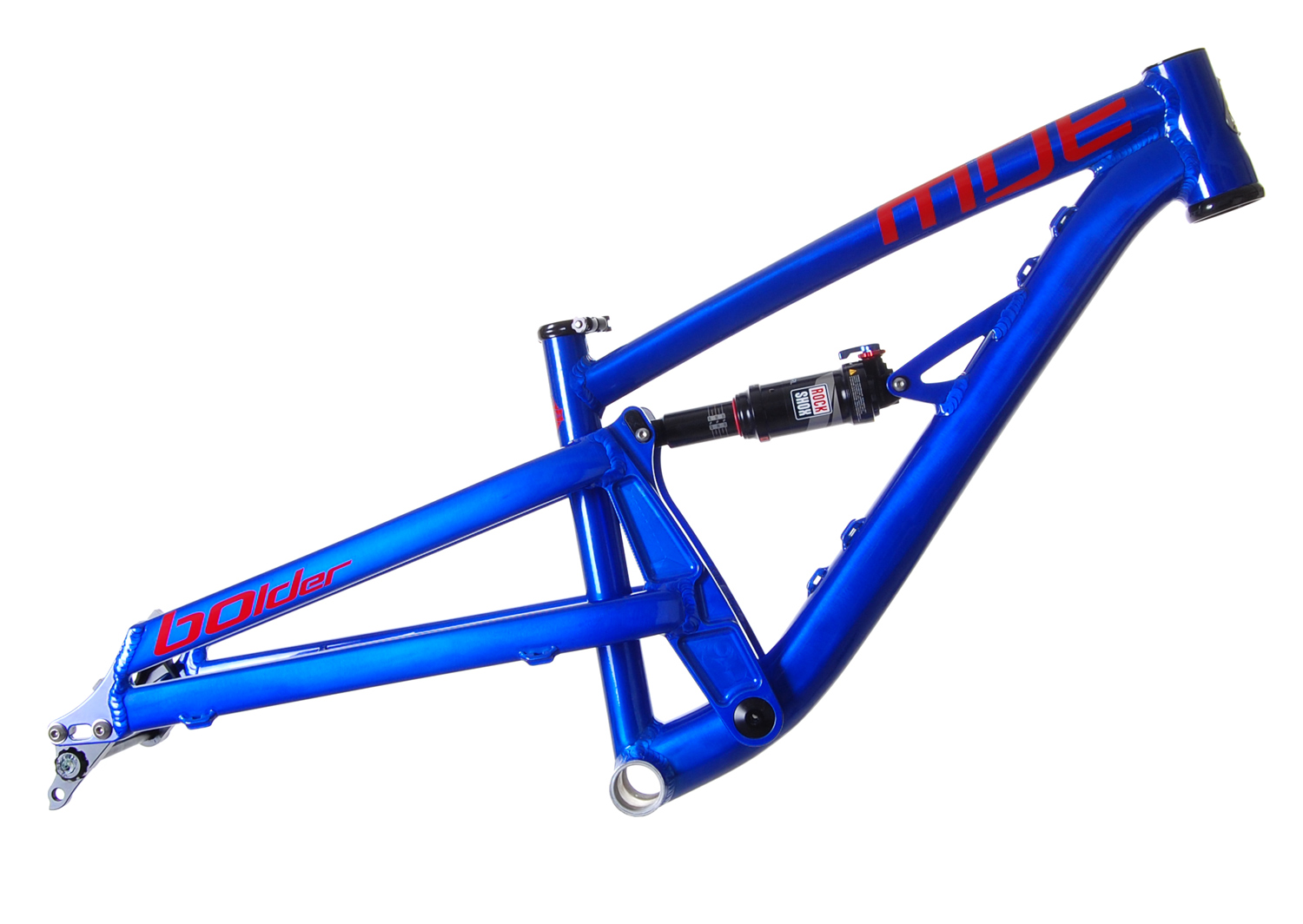

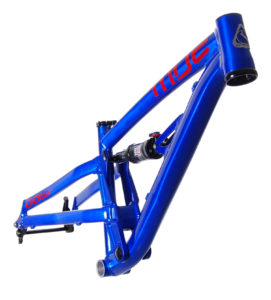

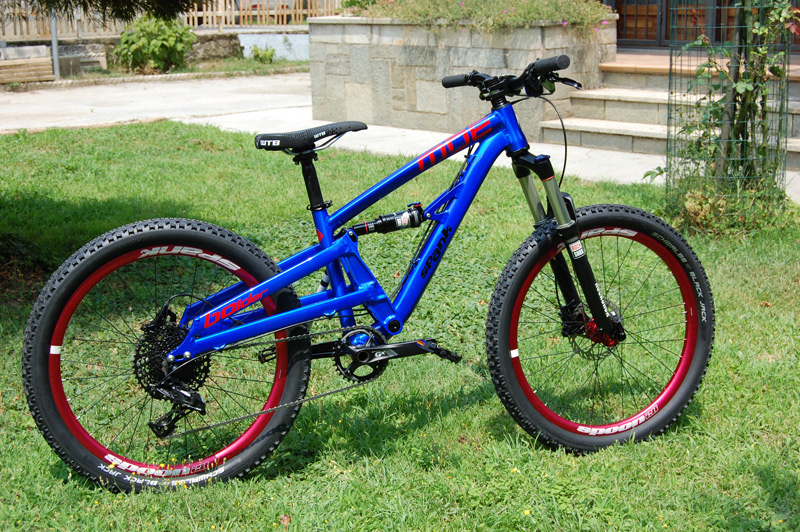

BOLDER 24
ENDURO FOR KID - 110-130MM – 24″/26"
DISCONTINUED FRAME
Our frames are made by hand one by one in our workshop. We can offer many colors customization. We can do them tailor made (Rider tuned geometry).
Delivery within 60 days from order confirmation.
(General description of the service and Shipping cost)
OVERVIEW
TYPE: KIDS ALL MOUNTAIN
WHEELS SIZE: 24″ OR 26″
FRAME MATERIAL: 7005 T6 ALLOY HYDROFORMING
SYSTEM: MONOPIVOT

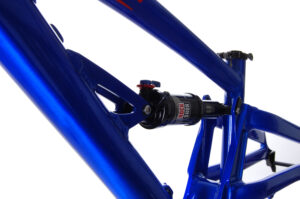

STD REAR SHOX:ROCK SHOX MONARCH RL 190X51MM
WHEEL TRAVEL: 110MM OR 130MM (4.3 OR 5,1″)
BB: 73MM
DROPOUTS: 142X12MM OR 148X12MM (QR OR BOLT AXLE)
WEIGHT: 2,50KG (W/O SHOX)
SIZE: REGULAR
GEOMETRY
Geometry based on 525mm axle-to-crown (130mm 26″ Fork)
Shox: Rock Shox Monarch RL 190x51mm
BB DROP: +5mm
w 24×2.3 tires
| SIZE | REGULAR |
| ST | 350 |
| TTR | 480 |
| REACH | 358 |
| STACK | 558 |
| SA | 75° |
| HA | 66° |
| HT | 100 |
| BBH | 300 |
| CS | 420 |
| WB | 1080 |
| RIDER HT | 128-150cm |
FRAME SPECS
MAX FORK TRAVEL: 150MM
REAR SHOCK SIZE: 190MM X 51MM
SHOCK HARDWARE: 22MM X 8MM, 50MM X 8MM
REAR TRAVEL: 110-130MM
HEADSET (TOP): 44MM ZERO STACK
HEADSET (BOTTOM): 49MM EXTERNAL CUP
BB SHELL: 73MM BSA THREADED
REAR BRAKE MOUNT: 160MM POST MOUNT
REAR AXLE:148X12MM (SRAM MAXLE STD)
FRONT DERAILLEUR: 34.9MM TOP SWING, NEW FRONT DIRECT PULL (SHIMANO)
ISCG TABS : NONE
SEATPOST DIAMETER: 30.9MM
SEAT CLAMP: 34.9MM
MAX CHAINRING SIZE: 38T SINGLE OR 38-26 DOUBLE (ONLY BOOST CRANKSET)
MAX TIRE SIZE: 24″X2.5 OR 26″X2.5
