695 LUMBERJACK

DOWNHILL -210MM - 27.5"

DISCONTINUED FRAME

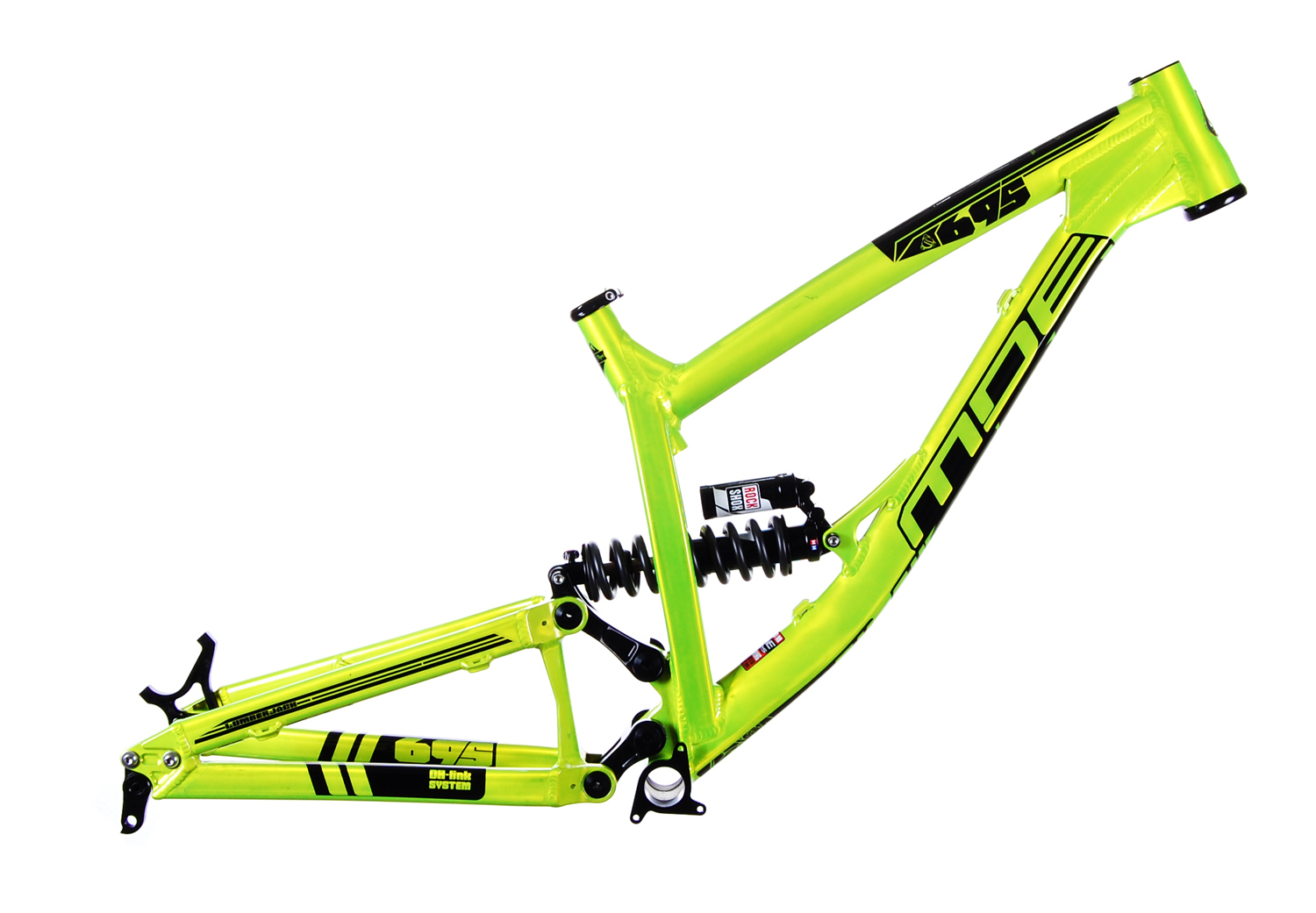

695 LUMBERJACK FRAMESET

STARTING FORM: 1899.00 €

695 LUMBERJACK RACE BIKE

STARTING FORM: 3990.00 €

Our frames are made by hand one by one in our workshop. We can offer many colors customization. We can do them tailor made (Rider tuned geometry). Delivery within 60 days from order confirmation.(General description of the service and Shipping cost)

OVERVIEW

TYPE: 27.5” (650B), DH / PARK
WHEELS SIZE: 27.5″
FRAME MATERIAL: 7005 T6 ALLOY HYDROFORMING
SYSTEM: DH-LINK
STD REAR SHOX: ROCK SHOCK VIVID COIL R2C 241X76MM
WHEEL TRAVEL: 210MM (8,3″)
BB SHELL: 83MM (ISCG 05 OR 03 REPLACEABLE BRACKET)
DROPOUTS: 150×12 THRU
WEIGHT: 3,40KG (SIZE M W/O SHOX)
SIZE: S, M, L, XL

GEOMETRY

Geometry based on 586mm axle-to-crown (200mm Fork)

SIZE	S	M	L	XL
ST	428	428	428	428
TTR	570	590	610	630
REACH	389	409	429	449
STACK	623	623	623	623
SA'	73.7°	73.7°	73.7°	73.7°
HA	63°	63°	63°	63°
HT	120	120	120	120
BBH	348	348	348	348
CS	444	444	444	444
WB	1196	1216	1236	1256
RIDER HT	150-165cm	165-175cm	175-185cm	185-200cm

GALLERY

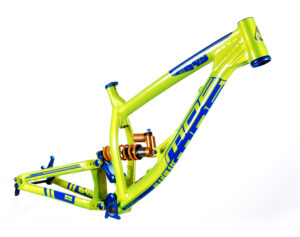

695_acid-gr-blue-ohlins

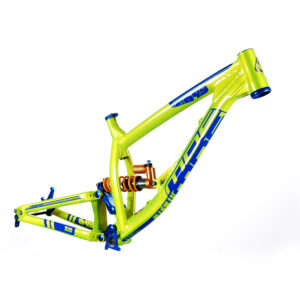

695_acid-gr-blue-ohlinsQ

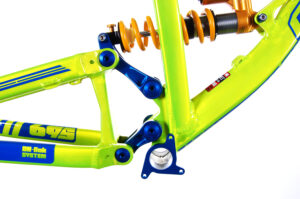

695_acid-gr-blue-ohlins_16

695_acid-gr-blue-ohlins_15

695_acid-gr-blue-ohlins_14

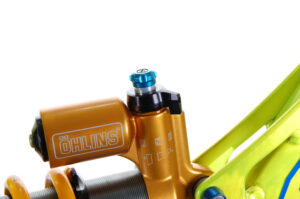

695_acid-gr-blue-ohlins_13

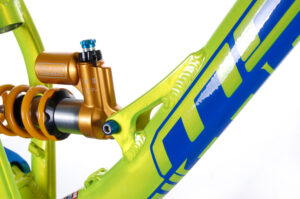

695_acid-gr-blue-ohlins_12

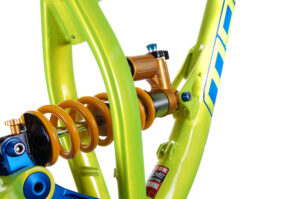

695_acid-gr-blue-ohlins_11

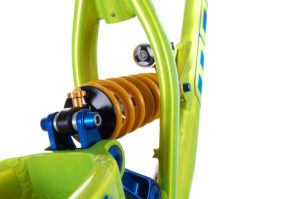

695_acid-gr-blue-ohlins_10

695_acid-gr-blue-ohlins_9

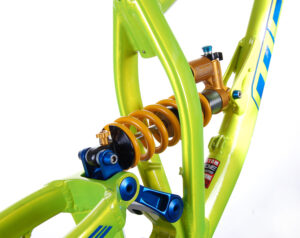

695_acid-gr-blue-ohlins_8

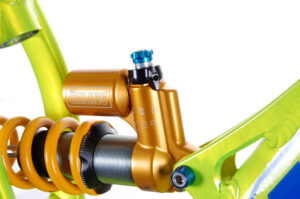

695_acid-gr-blue-ohlins_7

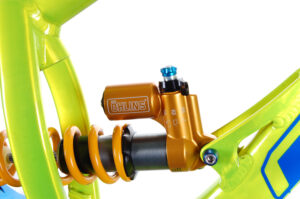

695_acid-gr-blue-ohlins_6

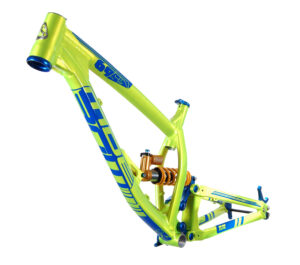

695_acid-gr-blue-ohlins_5

695_acid-gr-blue-ohlins_4

695_acid-gr-blue-ohlins_3

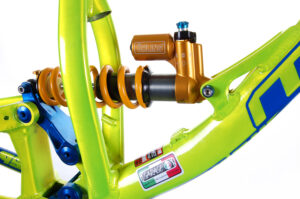

695_acid-gr-blue-ohlins_2

695_acid-gr-blue-ohlins_1Q

FRAME SPECS

MAX FORK TRAVEL: 200MM
REAR SHOCK SIZE: 241MM X 76MM
SHOCK HARDWARE: 22MM X 8MM, 22MM X 8MM
REAR TRAVEL: 210MM
HEADSET (TOP): 44MM ZERO STACK
HEADSET (BOTTOM): 49MM EXTERNAL CUP
BB SHELL: 83MM BSA THREADED
REAR BRAKE MOUNT: 160MM POST MOUNT
REAR AXLE:150X12MM (SRAM MAXLE STD)
ISCG TABS : ISCG 05 (1.5MM OFFSET) REPLACEABLE TAB
SEATPOST DIAMETER: 30.9MM
SEAT CLAMP: 34.9MM
MAX CHAINRING SIZE: 42T SINGLE
MAX TIRE SIZE: 27.5×2.50
