E-Gravel | E-Touring | E-Road
Our frames are made by hand one by one in our workshop. We can offer many colors customization. We can do them tailor made (Rider tuned geometry).
Delivery within 60 days from order confirmation (General description of the service and Shipping cost).
OVERVIEW
- TYPE: E-Gravel | E-Touring | E-Road
- WHEELS SIZE: 700C | 29" | 27.5"
- FRAME MATERIAL: 7005 T6 Alloy Hydroforming - Handcrafted in Italy
- FORK MATERIAL: Carbon Fiber
- POWER UNIT: Polini E-P3 250W
- BATTERY: Polini E-P3 500Wh
- DROPOUTS: 142x12 | 148X12mm
- WEIGHT: 7,80Kg (size M w/o Shox)
- SIZES: S, M, L, XL or Tailor made
- EXTRA FEATURES: available also: dual battery version, suspended fork, flat bar
FULLY DESIGNED, ENGINEERED AND MANUFACTURED IN ITALY
CHOOSE YOUR SIZE
This size table based on your height is only a suggestion.
The optimal frame size also depends on other physical charactheristics and personal riding style.
Contact us to info@mdebikes.com if you need help to choose your size or if you want set a Rider tuned geometry
GEOMETRY
Tires:29×2.1 R | 29X2.1 F
BB Drop: 53mm
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| ST | 400 | 450 | 510 | 550 |
| TTR | 540 | 570 | 595 | 625 |
| REACH | 383 | 413 | 438 | 468 |
| STACK | 610 | 620 | 630 | 650 |
| SA | 76° | 76° | 76° | 76° |
| HA | 69° | 69° | 69° | 69° |
| HT | 110 | 120 | 130 | 150 |
| BH | 310 | 310 | 310 | 310 |
| CS | 450 | 450 | 450 | 450 |
| WB | 1099 | 1129 | 1154 | 1184 |
| RIDER HT | 150-165cm | 165-175cm | 175-185cm | 185-200cm |
GALLERY
FRAME SPECS
- MAX FORK TRAVEL: 100mm
- HEADSET (TOP): 44mm zero stack
- HEADSET (BOTTOM): 49mm external cup
- DRIVE UNIT FITTING: POLINI P3
- REAR BRAKE MOUNT: 160mm post mount
- REAR AXLE: 148X12mm or 142x12mm (Sram Maxle Std)
- FRONT DERAILLEUR: 34,9mm down swing, New direct pull (Shimano)
- SEATPOST DIAMETER: 30,9mm
- SEAT CLAMP: 34,9mm
- MAX CHAINRING SIZE: 42T single or 42-28 double
- MAX TIRE SIZE: 29X 2.1 or 700x50c
- MORE: RACK and FENDER MOUNTS

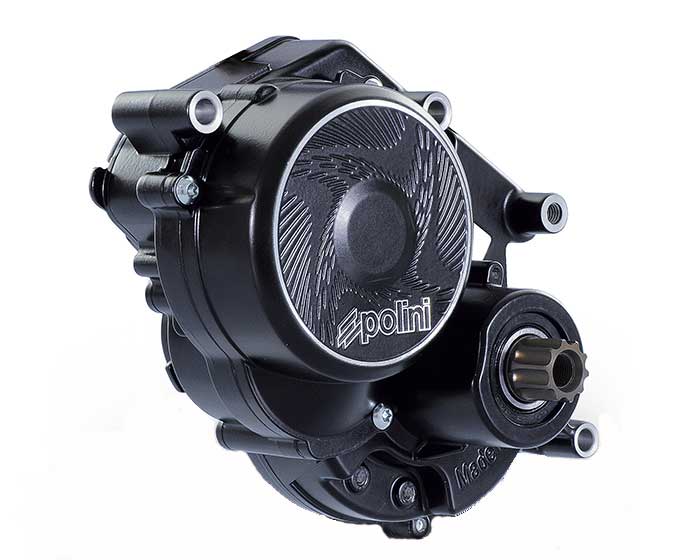

DRIVE UNIT
Polini E-P3 stands out for its unique design, compact dimensions, and lighter weight compared to the motors nowadays available on the market and an unparalleled power.
- MOTOR:250 WATT (500 W PEAK)
- MAXIMUN TORQUE: 70 Nm
- MOTOR WEIGHT: 2.850 GR.
- BATTERY: 500 Wh
- BATTERY WEIGHT: 2.620 GR.
- BATTERY RANGE TILL: 220 Km
- ASSISTANZCE: 25 Km/h
FULLY-INTEGRATED DOWN TUBE BATTERY
Thanks to its innovative design, the lithium-ion battery of 500 Wh ca be integrated in the frame, giving a captivating aesthetic effect. The down-tube, studied to reduce the optical impact, is made of drawn aluminum, and it is perfectly integrated with the motor mounting. Between the innovative solutions, there is also the possibility to house inside the down-tube all the control cables (rear brake, gear and derailleur), making them invisible.
BATTERY
Battery and capacity Lithium ION 500 Wh13,8 Ah
Voltage 36 V
Battery Weight 2.620 gr.
Size approx. 340 x 80 x 70 mm
ERGONOMIC LCD DISPLAY
Compact and easy to read it lets a simple and intuitive control of your E-Bike.
- Display Dot matrix
- Degree of protection IP 65
- Ambient light sensor
- Integrated Joystick
- Bluetooth LE interface
- Walk assist function
- Micro-usb interface
- Base functions:
- Light
- Assistance level
- State of charge
- Speed
- Pedal power
- Motor power
BATTERY RANGE
RANGE AUTONOMY IN KM
MEDIUM PEDALING FREQUENCY 60-80 RPM.
CYCLIST WEIGHT 60-80 Kg
AUTONOMY AVERAGE SPEED 20/25 Km / h
WITH ROAD TIRES OR MTB XC-TIRES
FLAT PATH

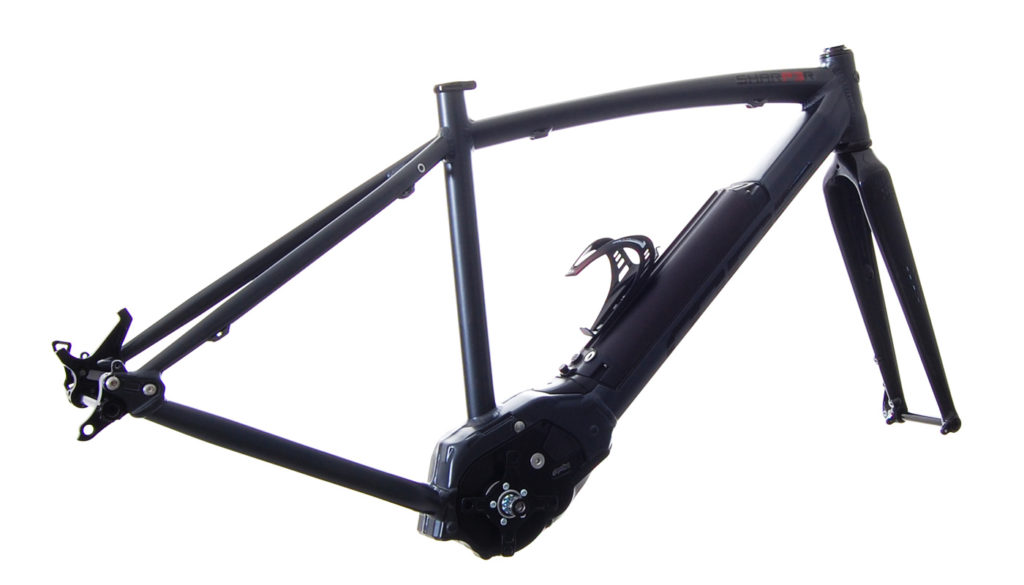

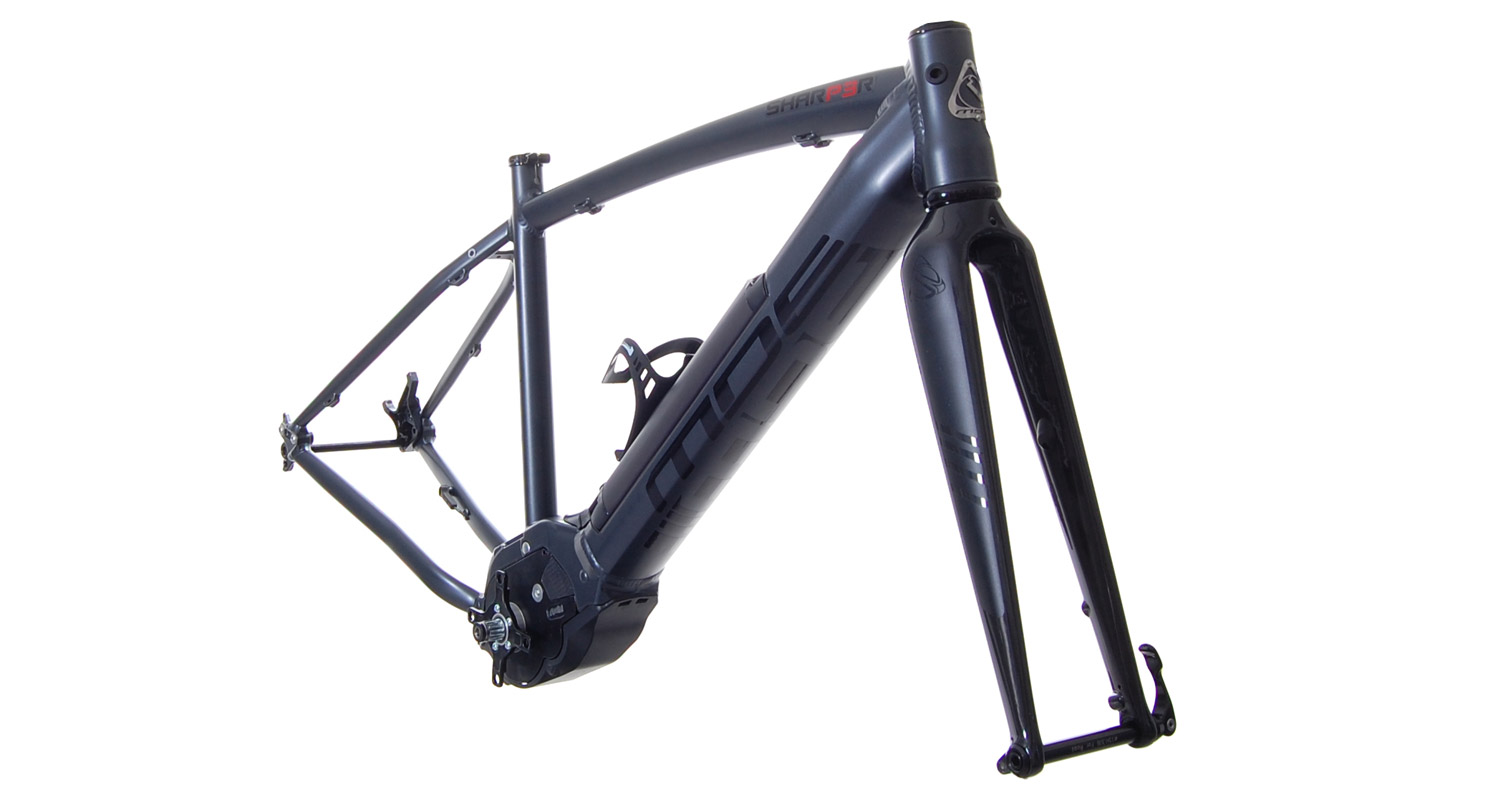

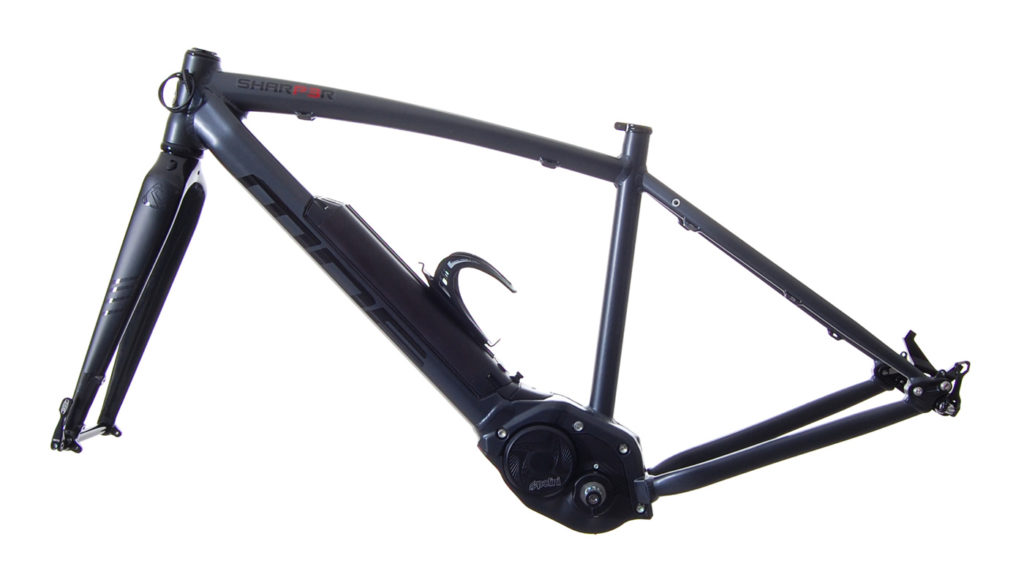

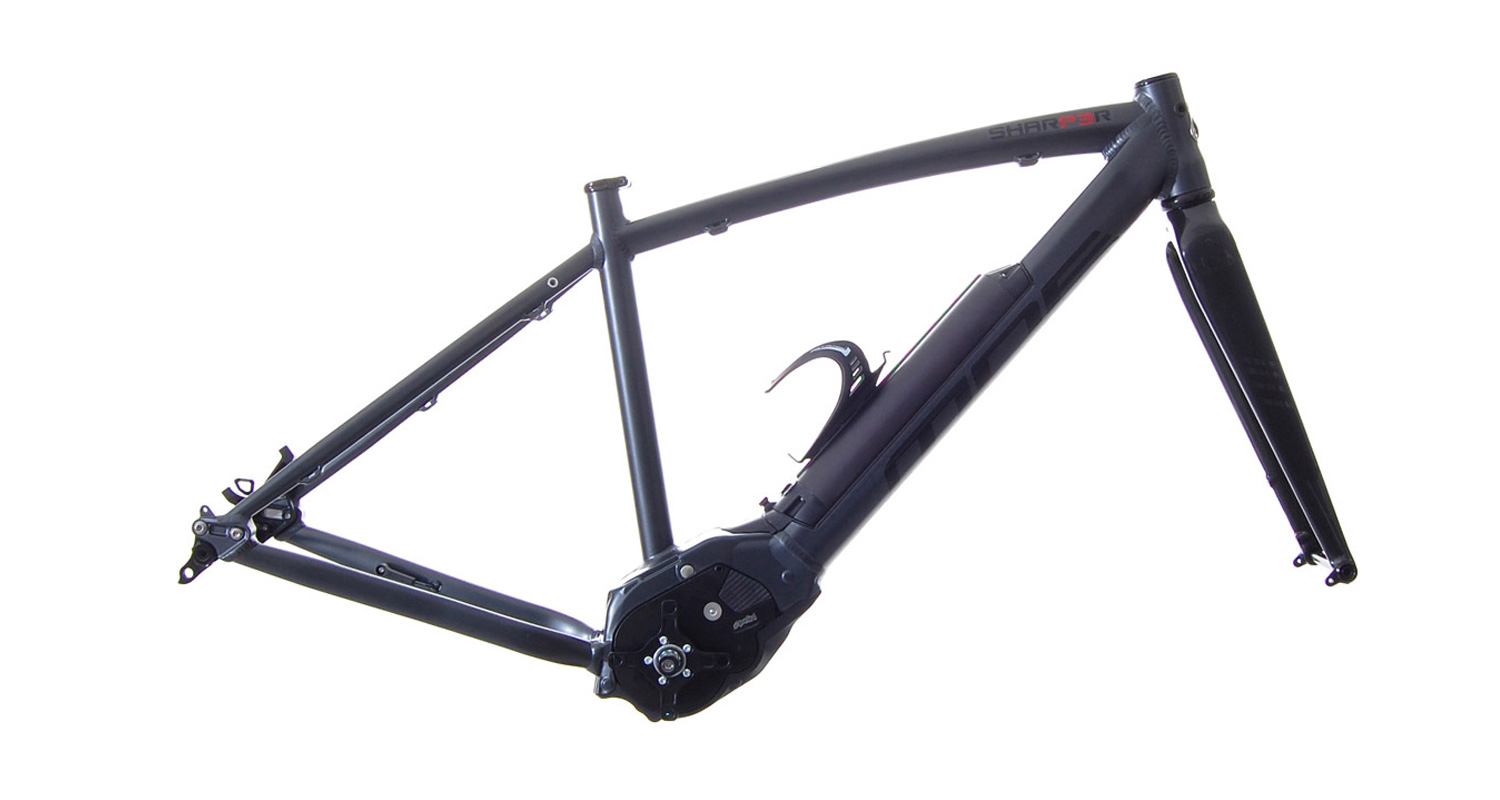

FRAMESET
YOU CAN ORDER SHARP3R AS FRAMESET WITH DRIVE UNIT , BATTERY AND OTHER PARTS. THE AVAILABLE OPTIONS ARE THE FOLLOW
- SIZE: you can choose STD size or Rider Tuning Geometry
- DROPOUTS: 142mm or 148mm | 12mm QR or Bolt axle
- DROPOUT HANGER: you can add a spare rear hanger with a special price
- HEADSET: MDE HS ZS44-EC49 is available and you can choose to add to the order
- FRAME COLOR: many colors are available. Someone has a surchage
- DETAILS COLOR: Black Anodizing is the standard color for Cnc parts. Other colors are available with surcharge
- DECALS COLOR: there are some Std decals colors you can choose or we can do custom following your request
- FORK OPTION: some forks are available and you can add to the order
- SEATPOST: some dropper post are available and you can add to the order
- STARTING PRICE: 3.200,00€ (2.622,95 € EX VAT)
NOTE: Drive unit, Battery and all the wiring will be already assembled and tested. You just need to assembly all the other components and fix the magnet on the rear wheel. We need to know which rear wheel diameter you choose in order to set it.
CLICK BELOW AND SELECT THE AVAILABLE OPTIONS FOR FRAMESET. YOU CAN PLACE THE ORDER WITH A 30% OF DOWN PAYMENT.
YOU WILL DO THE BALANCE WHEN YOUR ORDER WILL BE READY TO BE SHIPPED
SOLD OUT

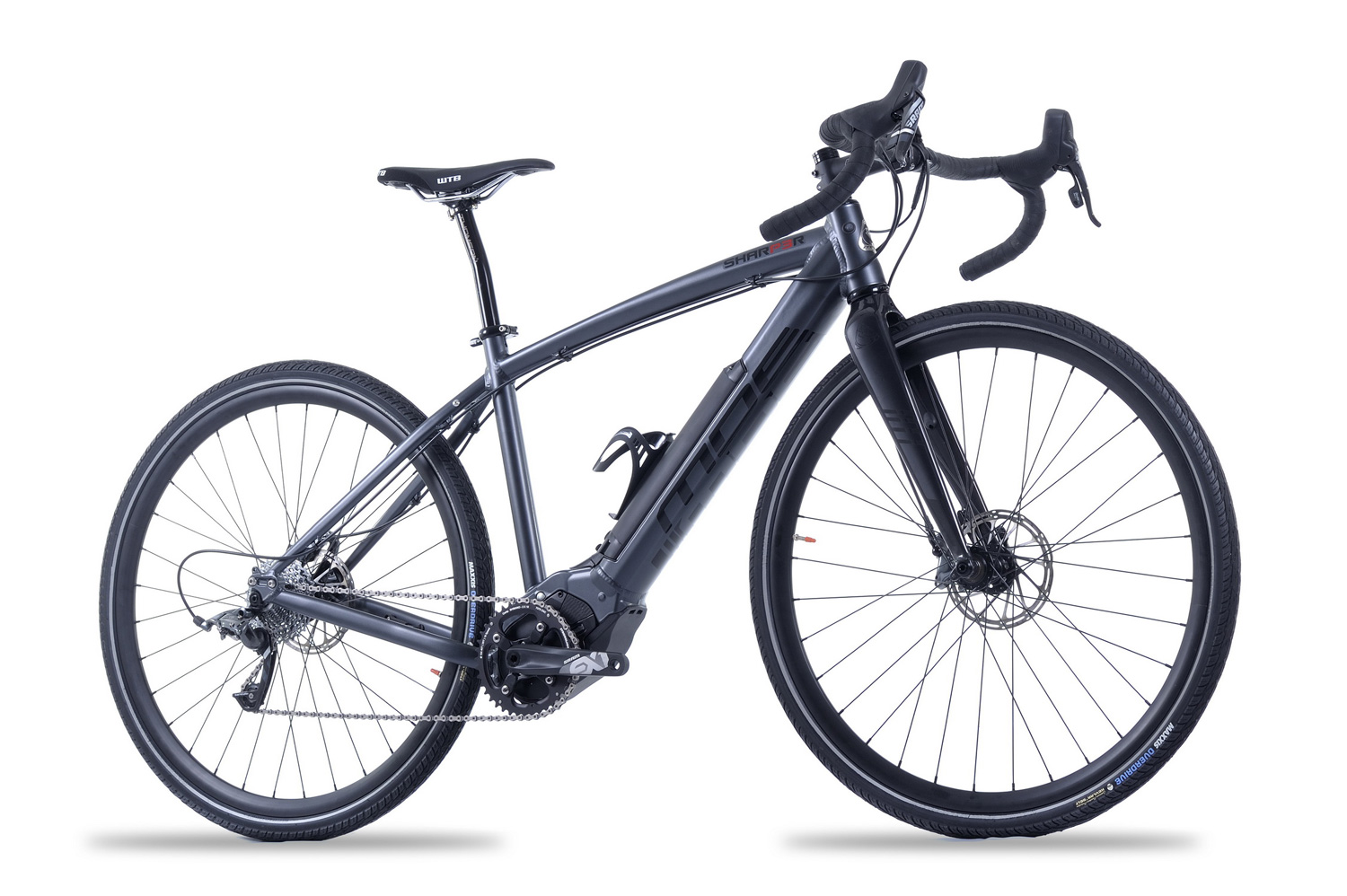

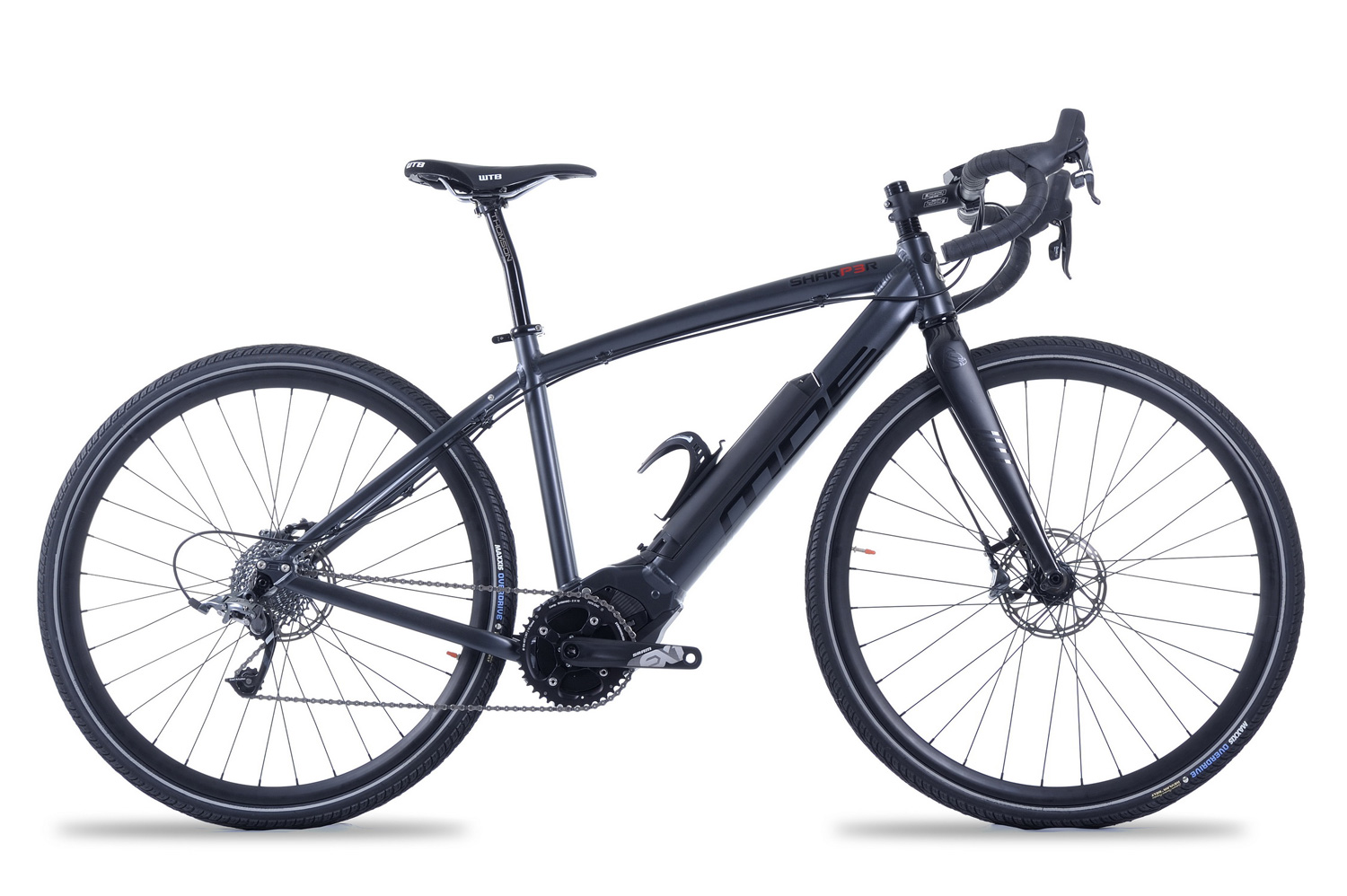

RACE BIKE SPECS
- FRAME: SHARP3R - 7005 T6 ALLOY - I-LINK 2.0
- DROPOUTS: 142x12mm QR AXLE
- HEADSET: MDE HS ZS44-EC49
- FRAME COLOR: many colors are available. Someone has a surcharge
- DETAILS COLOR: Black Anodizing is the standard color for Cnc parts. Other colors are available with surchage
- DECALS COLOR: there are some Std decals colors you can choose or we can do custom following your request
- FORK: CARBON 485MM | 100X15mm | POST MOUNT
- WHEELS: MDE DEVOUR 29 | 21mm rims width | 100x15F | 142x12R \ SH
- FRONT TIRE: MAXXIS TORCH 29X210K 60TPI
- REAR TIRE: MAXXIS TORCH 29X210K 60TPI
- BRAKES: SRAM RIVAL - Rotor Centerline | 160/160
- SHIFTER: SRAM RIVAL DISC 1x11s
- REAR DER.: SRAM RIVAL 11s | X-actuation | Long cage
- CRANKSET: SRAM EX1 | 170mm/175mm | 40T
- DRIVE UNIT: POLINI E-P3 250W
- CASSETTE: SRAM PG 1130 Black 11s | 11-36T
- CHAIN: SRAM PC 1130 11s | Power Lock
- STEM: RITCHEY COMP 4AXIS BLACK 84/6° | 80-90-100-110-120-130mm
- HANDLEBAR: RITCHEY COMP VENTUREMAX | 40-42-44-46mm
- GRIPS: RITCHEY COMP BLACK CORK
- SEATPOST: RITCHEY COMP V2 BLACK 400mm x 30,9
- SADDLE: WTB SILVERADO PRO
- PEDALS: NONE
- WEIGHT: 18.2 kg
- STARTING PRICE: 4.990,00€ (4.090,16€ EX VAT)
CLICK BELOW AND SELECT THE AVAILABLE OPTIONS FOR RACE BIKE. YOU CAN PLACE THE ORDER WITH A 30% OF DOWN PAYMENT.
YOU WILL DO THE BALANCE WHEN YOUR ORDER WILL BE READY TO BE SHIPPED
SOLD OUT
A' LA CARTE
WE CAN FOLLOW YOUR REQUEST. SEND US THE LIST OF COMPONETS YOU WOULD LIKE TO GET ON YOUR DREAM BIKE. WE WILL SEND YOU A QUOTATION AND WE WILL DISCUSS WITH YOU TO FIX THE BEST OPTIONS FOR YOUR NEEDS. CONTACT US: info@mdebikes.com
