DROPOUTS COMPLETE KIT

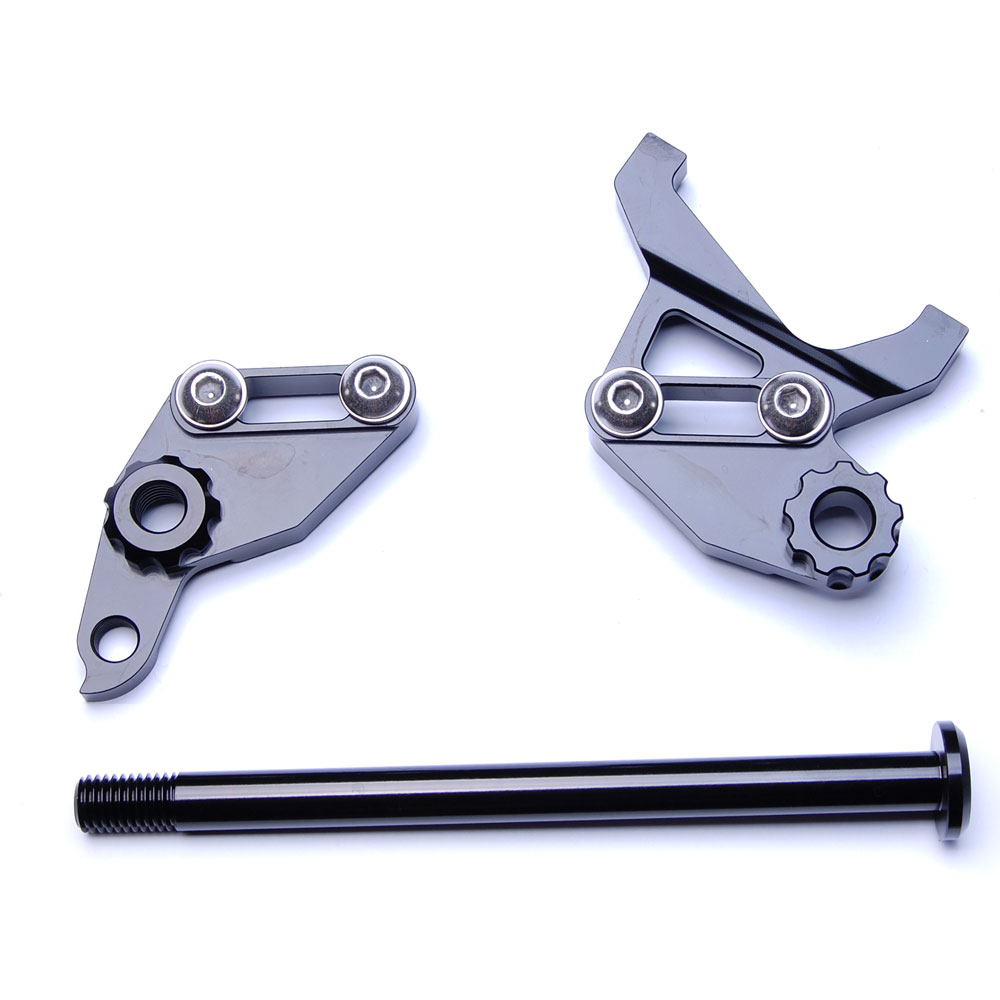

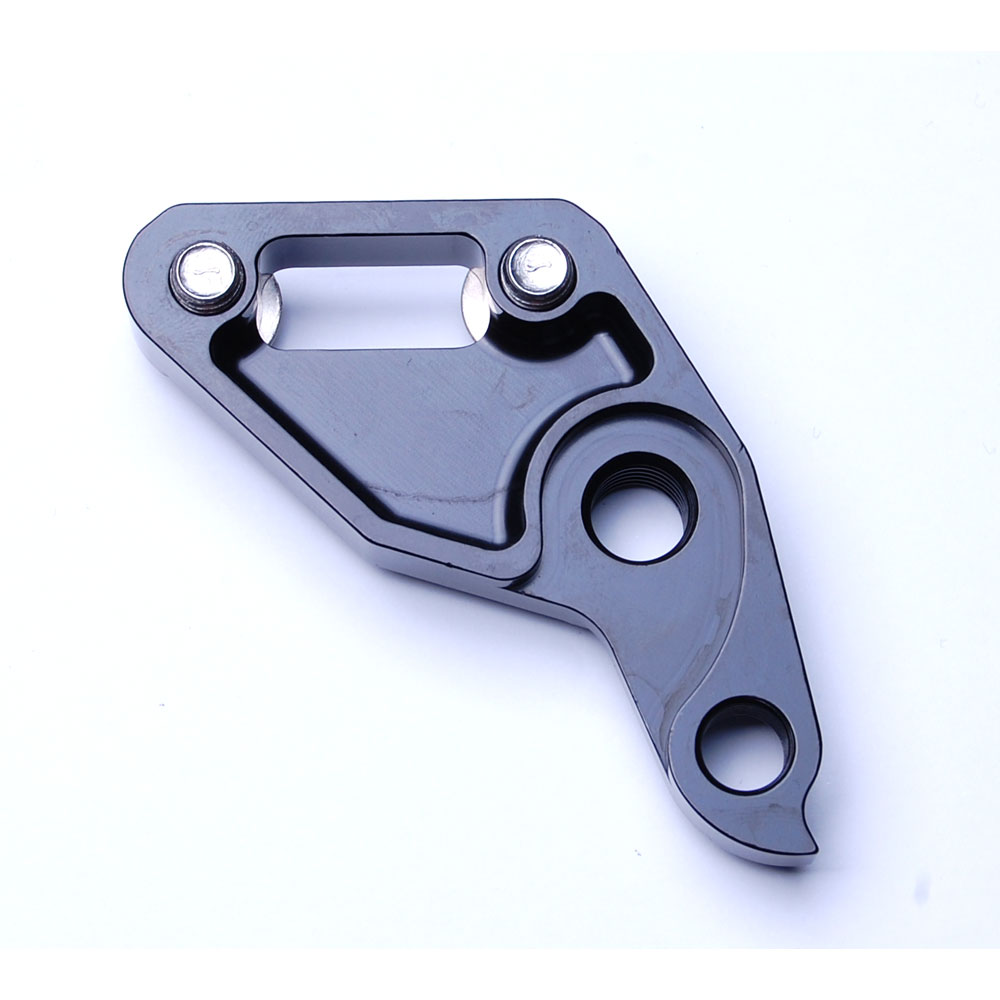

The kit includes the two dropouts, MDE Bolt axle and screws for fitting

Attention: this version allows to extend the 14mm the chainstays lenght. This allows you to mount larger diameter wheels on our frames, even old model years.
If the frame was for 26 wheels with +14mm dropouts you can mount 27.5 “wheels.
If the frame was for 27.5 “wheels with +14mm dropouts you can mount 29” or 650b +

Size: 148X12mm (Sram Std)

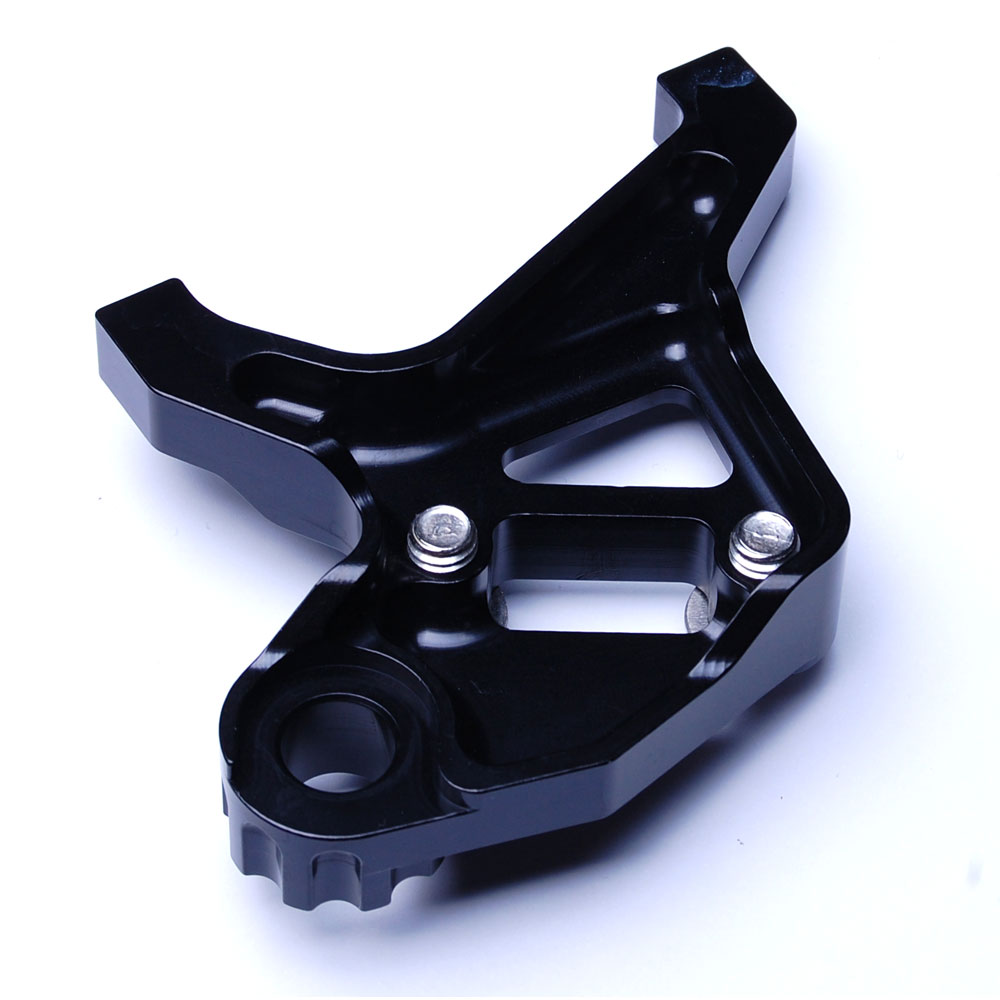

Brake caliper bracket: 160mm Post Mount Front (use adapters like on the front fork)
Colours: Black, Silver, Red, Blue, Titanium
Material: Anodized AL 7075
Compatibility frames: All our models with MDS (MDE Dropotuts System)

Availability: Black color shipping in 48h, other colors shipping in 15/20 days
