Our frames are made by hand one by one in our workshop. We can offer many colors customization. We can do them tailor made (Rider tuned geometry).
Delivery within 60 days from order confirmation.(General description of the service and Shipping cost).
OVERVIEW
- TYPE: AGGRESSIVE XC / TRAIL / ALL MOUNTAIN
- WHEELS SIZE: 27.5″ OR 29″ OR 605B+
- FRAME MATERIAL: CR-MO
- SYSTEM: HARD TAIL
- BB: 68MM BSA THREADED
- DROPOUTS: SLIDE 10MM: 135×10 QR OR 142X12MM OR 148X12MM
- WEIGHT: 2.30KG (SIZE M)
- SIZES: S, M, L, XL or Tailor Made
OVERVIEW
ONLY FRAME FROM 1190,00 €
Delivery time is now 60 days after order confirmation
GEOMETRY
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| ST | 390 | 430 | 480 | 510 |
| TTR | 570 | 595 | 615 | 640 |
| REACH | 395 | 420 | 440 | 495 |
| STACK | 629 | 632 | 636 | 641 |
| SA | 74.8° | 74.8° | 74.8° | 74.8° |
| HA | 67.5° | 67.5° | 67.5° | 67.5° |
| HT | 107 | 110 | 115 | 120 |
| BBH | 314 | 314 | 314 | 314 |
| CS | 430-440 | 430-440 | 430-440 | 430-440 |
| WB | 1107 | 1132 | 1152 | 1177 |
| RIDER HT | 150-165cm | 165-175cm | 175-185cm | 185-200cm |
Geometry based on 650b+x2.8 wheels with 520mm fork length (120mm travel) – BB Drop=55mm
With 29″x2.35 wheels and 530mm fork length (130mm travel) SA = 67.0 ° BH = 322mm
With 27.5″x2.5 wheels and 545mm fork length (150mm stroke) SA = 66.2 ° BH = 319mm
Rider tuned geometry is available for this frame. Enter the required measures in the configurator or contact us to info@mdebikes.com

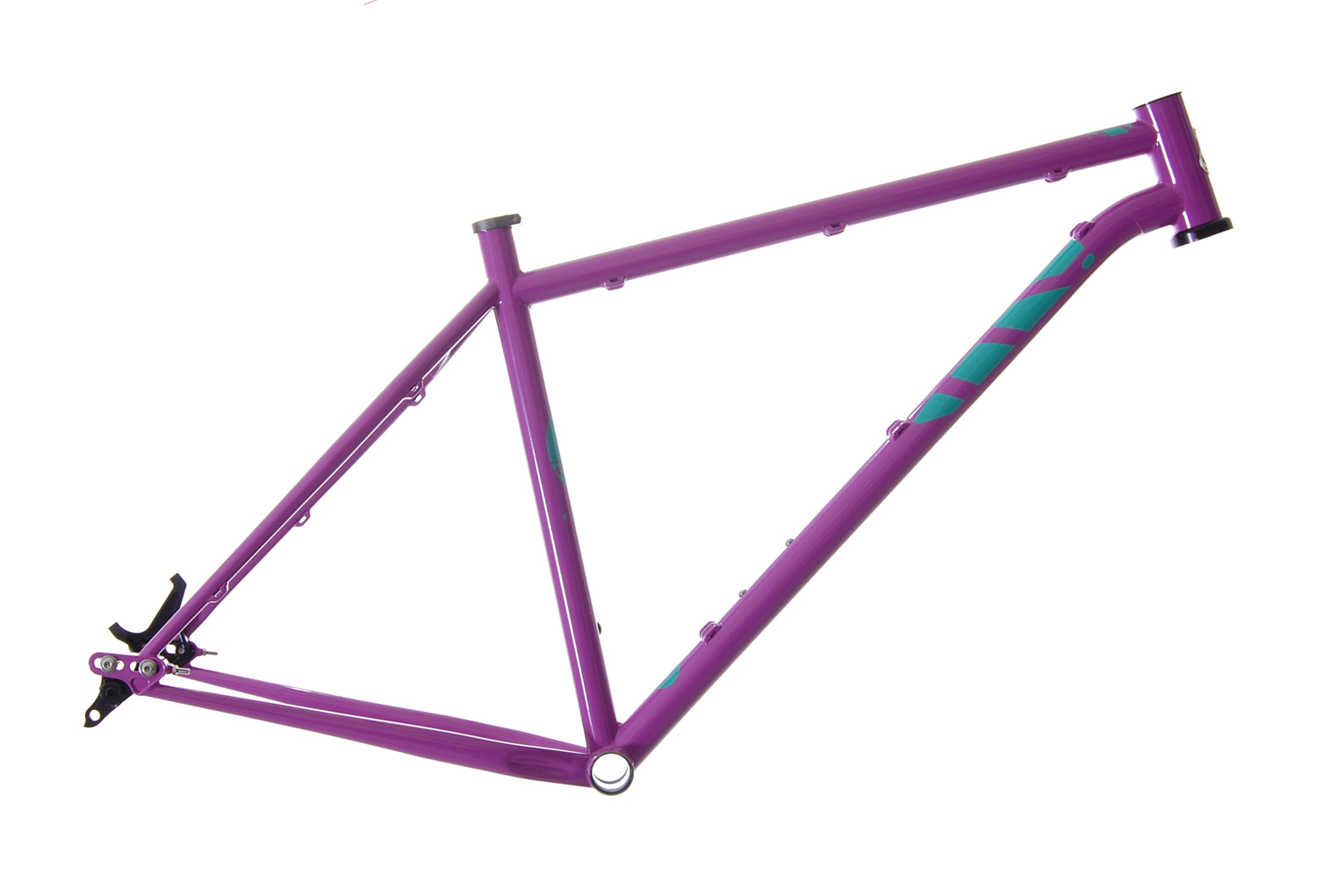

GALLERY
FRAME SPECS
- MAX FORK TRAVEL:150MM(27.5″), 140MM(29″ OR 60B+)
- HEADSET (TOP): 44MM ZERO STACK
- HEADSET (BOTTOM): 44MM EXTERNAL CUP
- BB SHELL: 68MM BSA THREADED
- REAR BRAKE MOUNT: 160MM POST MOUNT
- REAR AXLE: 135×10 QR OR 142X12MM OR 148X12MM
- FRONT DERAILLEUR:34.9MM TOP SWING, ONLY ON REQUEST
- SEATPOST DIAMETER: 30.9mm (option 27.2mm)
- SEAT CLAMP: 33.0MM
- MAX CHAINRING SIZE: 36T SINGLE OR 38-26 DOUBLE (ONLY BOOST CRANKSET)
- MAX TIRE SIZE: 29″X2.5 OR 27.5″X3.0
