Our frames are made by hand one by one in our workshop. We can offer many colors customization. We can do them tailor made (Rider tuned geometry).
Delivery within 60 days from order confirmation.(General description of the service and Shipping cost).
OVERVIEW
- TYPE: GRAVEL | BIKEPACKING | OFF-ROAD TOURING
- WHEELS SIZE: 700CX45 | 29″X2.1 | 27.5"X2.5
- FRAME MATERIAL: COLUMBUS NIVACROM
- SYSTEM: HARD TAIL
- BB: 68MM BSA THREADED
- DROPOUTS: SLIDE 10MM: 135×10 QR | 142X12MM | 148X12MM
- WEIGHT: 2.10KG (SIZE M)
- SIZES: S, M, L, XL or Tailor made
ONLY FRAME FROM 1190,00 €
Delivery time 60 days after order confirmation
GEOMETRY
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| ST | 490 | 520 | 550 | 580 |
| TTR | 523 | 546 | 571 | 599 |
| REACH | 376 | 386 | 396 | 412 |
| STACK | 529 | 559 | 589 | 611 |
| SA | 74.5° | 74.0° | 73.5° | 73.0° |
| HA | 70.0° | 70.5° | 71.0° | 71.5° |
| HT | 100 | 130 | 160 | 180 |
| BBH | 298 | 298 | 298 | 298 |
| CS | 445-455 | 445-455 | 445-455 | 445-455 |
| WB | 1037-1047 | 1052-1062 | 1069-1079 | 1086-1096 |
| RIDER HT | 150-165cm | 165-175cm | 175-185cm | 185-200cm |
Geometry based on 29″×2.1 tires with 395mm fork length rake 50mm. BB Drop:70mm
Rider tuned geometry is available for this frame. Enter the required measures in the configurator or contact us to info@mdebikes.com
GALLERY

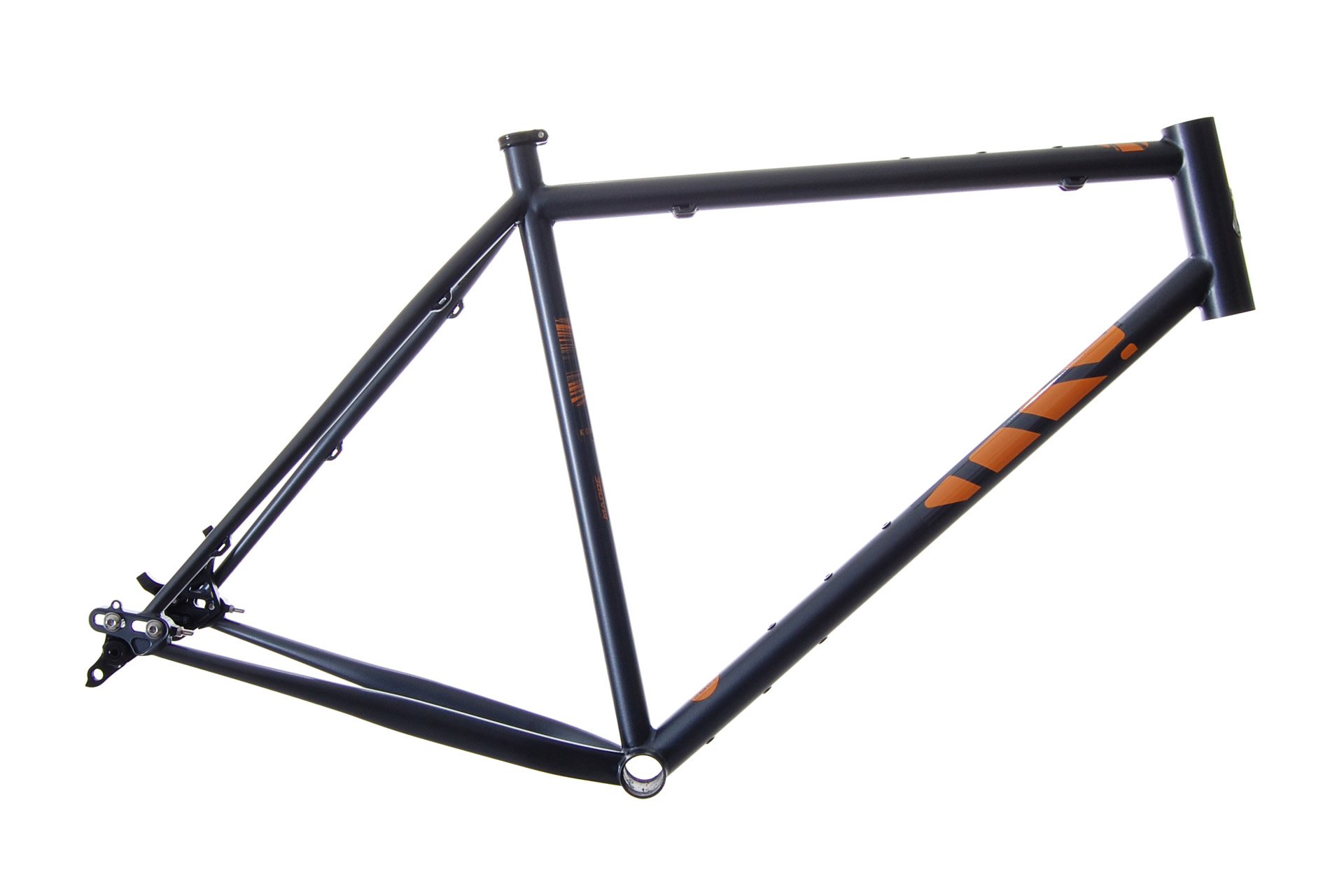

FRAME SPECS
- MAX FORK LENGTH: 410MM
- HEADSET (TOP): 44MM ZERO STACK
- HEADSET (BOTTOM): 44MM EXTERNAL CUP
- BB SHELL: 68MM BSA THREADED
- REAR BRAKE MOUNT: 160MM POST MOUNT
- REAR AXLE: 135×10 QR | 142X12MM |148X12MM
- FRONT DERAILLEUR: 29.8MM DOWN SWING, TOP DIRECT PULL
- SEATPOST DIAMETER: 27.2mm
- SEAT CLAMP: 29.8MM
- MAX CHAINRING SIZE: 42T SINGLE (ref.Sram Rival)
- MAX TIRE SIZE: 700CX50 | 29″X2.0
