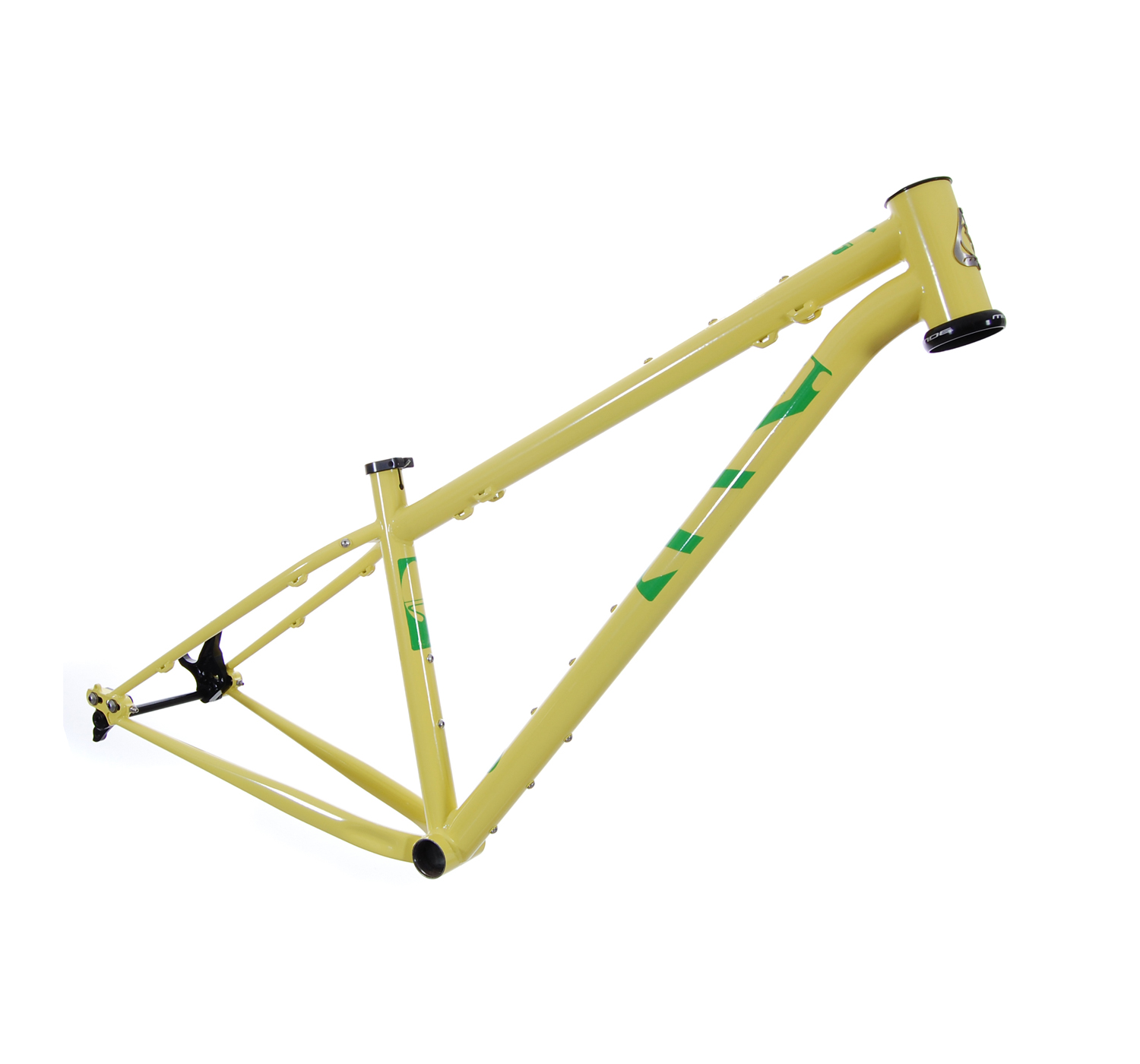

Our frames are made by hand one by one in our workshop. We can offer many colors customization. We can do them tailor made (Rider tuned geometry).
Delivery within 60 days from order confirmation.(General description of the service and Shipping cost).
OVERVIEW
- TYPE: ADVENTURE | BIKEPACKING | OFF-ROAD TOURING | SINGLETRACK
- WHEELS SIZE: 27.5″ OR 29″ OR 605B+
- FRAME MATERIAL: CR-MO
- SYSTEM: HARD TAIL
- BB: 68MM BSA THREADED
- DROPOUTS: SLIDE 10MM: 135×10 QR OR 142X12MM OR 148X12MM
- WEIGHT: 2.50KG (SIZE M)
- SIZES: S, M, L, XL or Tailor made
ONLY FRAME STARTING FROM 1190,00 €
Delivery time 60 days after order confirmation

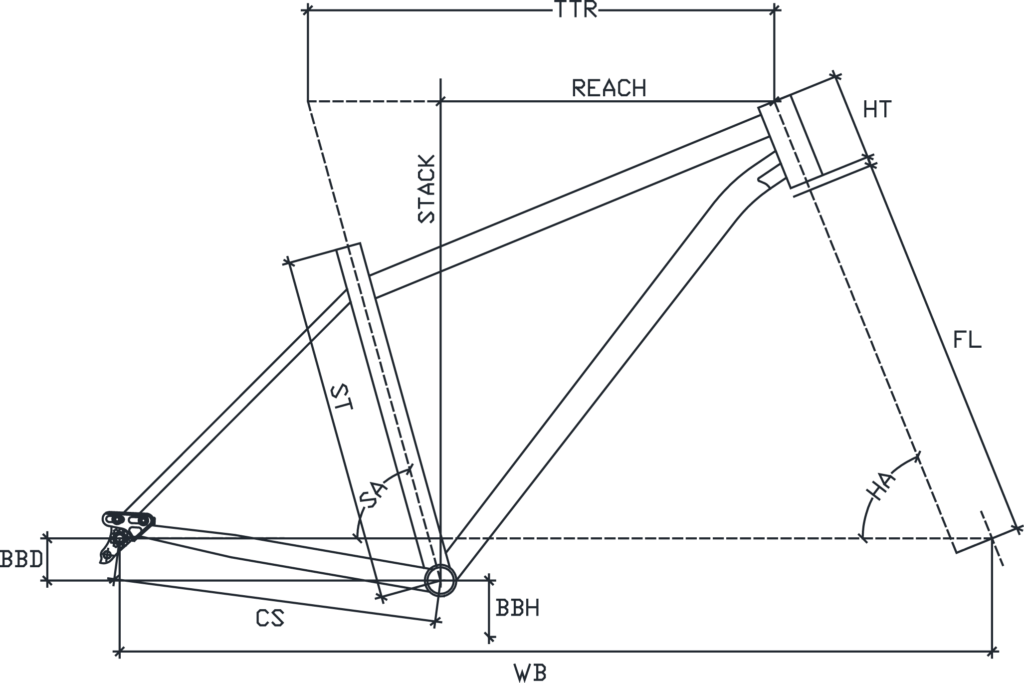

GEOMETRY
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| ST | 400 | 450 | 510 | 550 |
| TTR | 540 | 570 | 595 | 625 |
| REACH | 349 | 381 | 408 | 439 |
| STACK | 607 | 637 | 667 | 687 |
| SA | 73,5° | 73,5° | 73,5° | 73,5° |
| HA | 69° | 69° | 69° | 69° |
| HT | 100 | 130 | 160 | 180 |
| BBH | 295 | 295 | 295 | 295 |
| CS | 445-455 | 445-455 | 445-455 | 445-455 |
| WB | 1059 | 1091 | 1116 | 1141 |
| RIDER HT | 150-165cm | 165-175cm | 175-185cm | 185-200cm |
Geometry based on 29×2.1 tires with 485mm fork length. BB Drop:70mm
Rider tuned geometry is available for this frame. Enter the required measures in the configurator or contact us to info@mdebikes.com
GALLERY
FRAME SPECS
- MAX FORK TRAVEL: 100MM(29″), 120MM(27.5″)
- HEADSET (TOP): 44MM ZERO STACK
- HEADSET (BOTTOM): 44MM EXTERNAL CUP
- BB SHELL: 68MM BSA THREADED
- REAR BRAKE MOUNT: 160MM POST MOUNT
- REAR AXLE: 135×10 QR OR 142X12MM OR 148X12MM
- FRONT DERAILLEUR: 29.8MM DOWN SWING, TOP DIRECT PULL
- SEATPOST DIAMETER: 27.2mm
- SEAT CLAMP: 29.8MM
- MAX CHAINRING SIZE: 36T SINGLE OR 38-26 DOUBLE (ONLY BOOST CRANKSET)
- MAX TIRE SIZE: 29″X2.5 OR 27.5″X3.0
