ENDURO - PARK - AM/Trail
150mm / 158mm / 165mm Rear travel
Our frames are made by hand one by one in our workshop. We can offer many colors customization. We can do them tailor made (Rider tuned geometry).
Delivery within 60 days from order confirmation (General description of the service and Shipping cost).

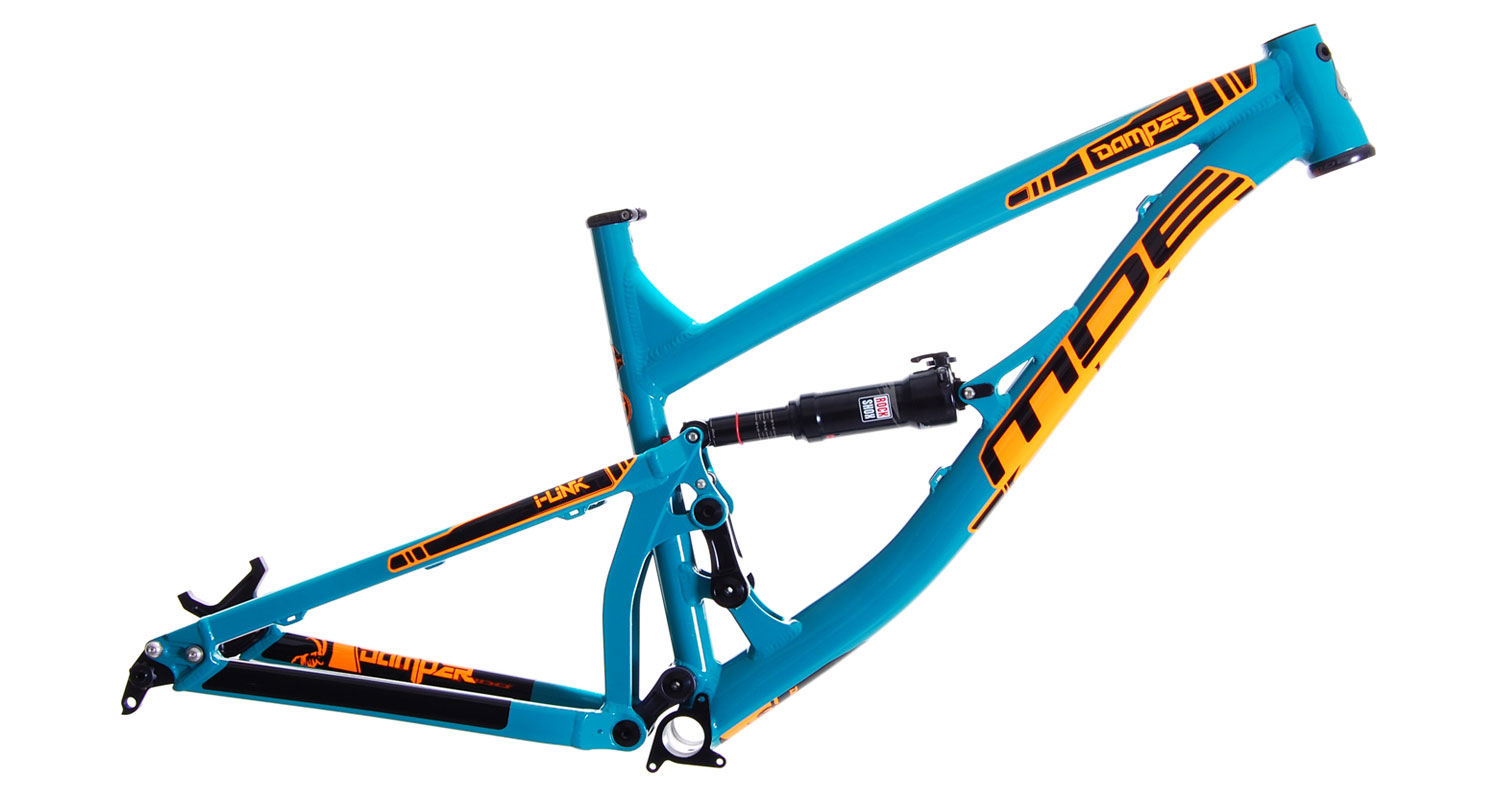

OVERVIEW
- TYPE: AggressiveAM / Enduro/ BikePark
- WHEELS SIZE: 29"
- FRAME MATERIAL: 7005 T6 Alloy Hydroforming
- SYSTEM: I-Link
- STD REAR SHOX: Rock Shox Super Deluxe Debonair 230X60mm
- WHEEL TRAVEL: 155mm | 160mm | 165mm (depending on the shock)
- BB SHELL: 73mm (Iscg 05 or 03 replaceabel bracket)
- DROPOUTS: 148X12mm (QR or Bolt Axle)
- WEIGHT: 3,10Kg (size M w/o Shox)
- SIZE: S, M, L, XL
- FEATURES EXTRA: compatibility with 216X63mm or 230X65mm
- REVIEW:
GEOMETRY
Shox: Rock Shox Monarch Plus 216x63mm
Tires: 29″x2.30
BB Drop: 22mm
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| ST | 390 | 430 | 460 | 490 |
| TTR | 560 | 585 | 605 | 630 |
| REACH | 410 | 435 | 460 | 485 |
| STACK | 603 | 610 | 613 | 623 |
| SA | 76,2° | 76,2° | 76,2° | 76,2° |
| HA | 65,5° | 65,5° | 65,5° | 65,5° |
| HT | 100 | 110 | 115 | 120 |
| BBH | 350 | 350 | 350 | 350 |
| CS | 444 | 444 | 444 | 444 |
| WB | 1174 | 1199 | 1224 | 1249 |
| RIDER HT | 150-165cm | 165-175cm | 175-185cm | 185-200cm |

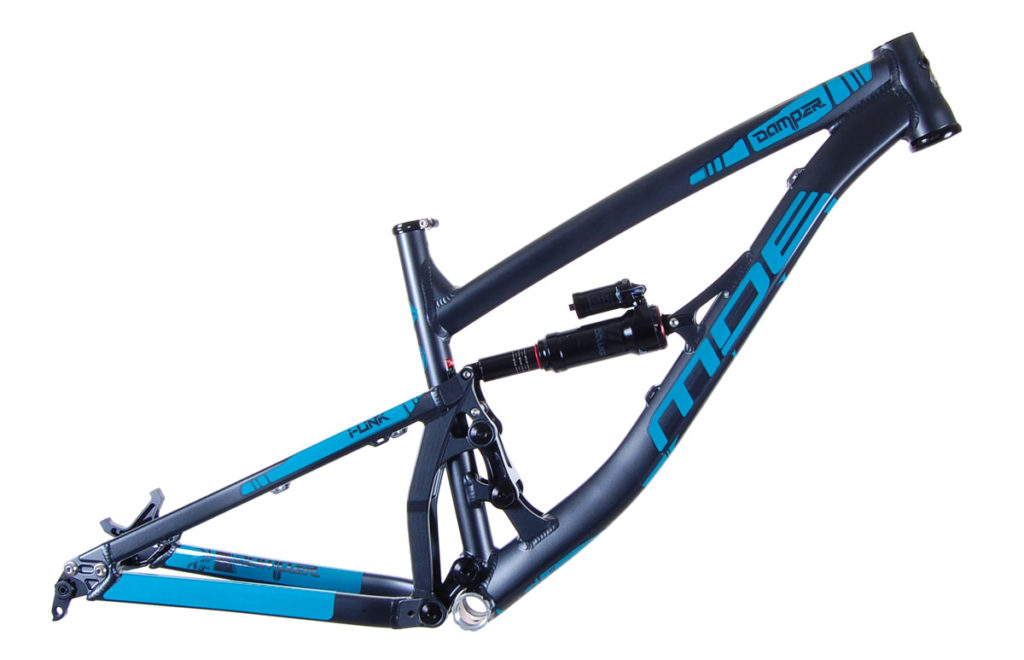

GALLERY
FRAME SPECS
- MAX FORK TRAVEL: 180mm
- REAR SHOCK SIZE: 230x60mm | 216X63mm | 230X65mm
- SHOCK HARDWARE: 22mm X 8mm, 40mm X 8mm
- REAR TRAVEL: 155mm | 160mm | 165mm
- HEADSET (TOP): 44mm zero stack
- HEADSET (BOTTOM): 9mm external cup
- BB SHELL: 73mm BSA threaded
- REAR BRAKE MOUNT: 160mm post mount
- REAR AXLE: 148X12mm (Sram Maxle Std)
- FRONT DERAILLEUR: 34,9mm top swing, New front direct pull (Shimano)
- ISCG TABS: ISCG 03 and 05 (1,5mm offset) replacable tab
- SEATPOST DIAMETER: 30,9mm
- SEAT CLAMP: 34,9mm
- MAX CHAINRING SIZE: 34T single or 36-24 double (only boost crankset)
- MAX TIRE SIZE: 29X 2.5 or 27,5×2.8
I-LINK 2.0
For 2020 we totally re -drew our I-link suspension system.
New linkages , new point positions, new bigger axles, new Enduro bearings.
Our old I-link system was already an evolution of past versions. We had improve the system year by year for many time and it has been no easy to improve again a good system like the old I-link.
In order to get a significant improve we has been work a lot of time and we have tested many different solutions.
- NEW MAIN PIVOT: 15mm NEW ergal pivots (old pivots were 12.7mm)
- NEW ENDURO BEARINGS: introduce new bigger bearings, especially made by Enduro Bearings on our specification
- NEW ANTI-SQUAT BEHAVIOR: we incrased little bit the anti-squat curve starting point. The new system still improves the already excellent pedaling behavior of the old one
- LEVERAGE RATIO: the new system has a progressive compression curve with a range from 2.9 to 2.3. This fit well with both air or coil spring shocks
- ANTI-RISE: anti-rise curve remain under 100% from the sag position to end of travel, for a neutral effect on the brake forces
I-LINK 2.0 OUR ADVANCE VIRTUAL PIVOT SYSTEM
A very high performance system, very stable when pedaling, maximum efficiency and response in overcoming roughness. Proggressive behavior for an infinite rear travel feeling and for a perfect match also with spring shock absorbers. Totally free from braking forces.
I-link 2.0 a further evolutionary step the ultra-proven suspension system
DRIVE UNIT
Polini E-P3 stands out for its unique design, compact dimensions, and lighter weight compared to the motors nowadays available on the market and an unparalleled power.
- MOTOR:250 WATT (500 W PEAK)
- MAXIMUN TORQUE: 70 Nm
- MOTOR WEIGHT: 2.850 GR.
- BATTERY: 500 Wh
- BATTERY WEIGHT: 2.620 GR.
- BATTERY RANGE TILL: 220 Km
- ASSISTANZCE: 25 Km/h
FULLY-INTEGRATED DOWN TUBE BATTERY
Thanks to its innovative design, the lithium-ion battery of 500 Wh ca be integrated in the frame, giving a captivating aesthetic effect. The down-tube, studied to reduce the optical impact, is made of drawn aluminum, and it is perfectly integrated with the motor mounting. Between the innovative solutions, there is also the possibility to house inside the down-tube all the control cables (rear brake, gear and derailleur), making them invisible.
BATTERY
Battery and capacity Lithium ION 500 Wh13,8 Ah
Voltage 36 V
Battery Weight 2.620 gr.
Size approx. 340 x 80 x 70 mm

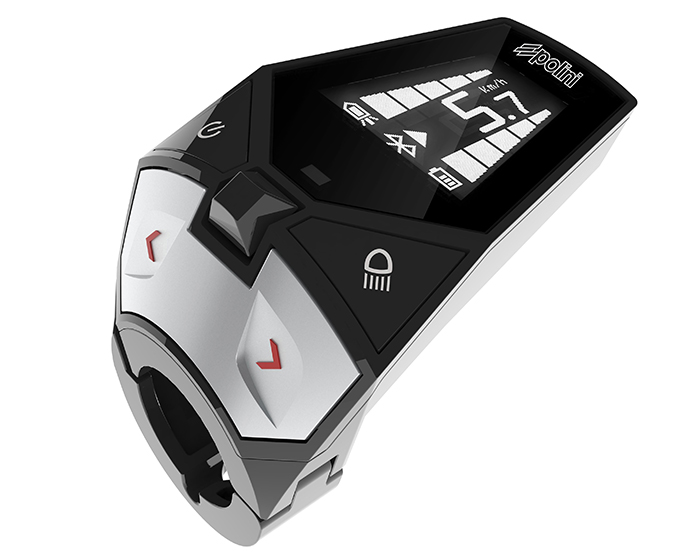

ERGONOMIC LCD DISPLAY
Compact and easy to read it lets a simple and intuitive control of your E-Bike.
- Display Dot matrix
- Degree of protection IP 65
- Ambient light sensor
- Integrated Joystick
- Bluetooth LE interface
- Walk assist function
- Micro-usb interface
- Base functions:
- Light
- Assistance level
- State of charge
- Speed
- Pedal power
- Motor power
FRAMESET
YOU CAN ORDER DAMPER 29 AS ONLY FRAME OR AS FRAMESET WITH SHOCK AND OTHER PARTS. THE AVAILABLE OPTIONS ARE THE FOLLOW
- SIZE: you can choose STD size or Rider Tuning Geometry
- DROPOUTS: 148X12MM QR AXLE or 148x12mm BOLT AXLE
- DROPOUT HANGER: you can add a spare rear hanger with a special price
- HEADSET: MDE HS ZS44-ZS56 is available and you cna choose to add to the order
- FRAME COLOR: many colors are available. Someone has a surchage
- DETAILS COLOR: Black Anodizing is the standard color for Cnc parts. Other colors are available with surcharge
- DECALS COLOR: there are some Std decals colors you can choose or we can do custom following your request
- SHOCK OPTION: some rear shocks are available and you can add to the order
- FORK OPTION: some forks are available and you can add to the order
- SEATPOST: some dropper post are available and you can add to the order
- STARTING PRICE: 1690.00€
CLICK BELOW AND SELECT THE AVAILABLE OPTIONS FOR DAMPER 29 FRAMESET. YOU CAN PLACE THE ORDER WITH A 30% OF DOWN PAYMENT.
YOU WILL DO THE BALANCE WHEN YOUR ORDER WILL BE READY TO BE SHIPPED
RACE BIKE SPECS
- FRAME: DAMPER 29 - 7005 T6 ALLOY - I-LINK 2.0
- DROPOUTS: 148x12mm BOLT AXLE
- HEADSET: MDE HS ZS44-ZS56
- FRAME COLOR: many colors are available. Someone has a surcharge
- DETAILS COLOR: Black Anodizing is the standard color for Cnc parts. Other colors are available with surchage
- DECALS COLOR: there are some Std decals colors you can choose or we can do custom following your request
- SHOCK: RS SUPER DELUXE SELECT+ 230X65MM
- REAR TRAVEL: 165MM
- FORK: RS LYRIC SELECT+ 29" 160MM 110X15 Boost
- WHEELS: PMP XL27 29" | 27mm rims width | 110x15F | 148x12R \ Sram XD
- FRONT TIRE: MAXXIS DHF 29X2.3 EXO TR
- REAR TIRE: MAXXIS DHR 29X2.3 EXO TR
- BRAKES: SRAM G2 RSC - Rotor Centerline | 180/180
- SHIFTER: SRAM GX Eagle Trigger 1x12s
- REAR DER.: SRAM GX Eagle 12s | X-actuation | Long cage
- CRANKSET: SRAM GX Eagle Boost Dub | 170mm/175mm | 32T
- BB: SRAM DUB BSA 68/73 mm
- CASSETTE: SRAM X-Glide 1275 Black 12s | 10-50T
- CHAIN: SRAM GX 12s | Power Lock
- STEM: TRUVATIV Descendant stem | 50mm | 31.8mm
- HANDLEBAR: TRUVATIV Descendant Riser Bar | 760mm | rise 20mm | 31.8mm
- GRIPS: MDE Lock-on Piramid
- SEATPOST: SWITCH SWR150/170mm
- SADDLE: WTB SILVERADO PRO
- PEDALS: NONE
- WEIGHT: 13.2 kg
- STARTING PRICE: 3890.00€
YOU WILL DO THE BALANCE WHEN YOUR ORDER WILL BE READY TO BE SHIPPED
COMP BIKE SPECS
- FRAME: DAMPER 29 - 7005 T6 ALLOY - I-LINK 2.0
- DROPOUTS: 148x12mm BOLT AXLE
- HEADSET: MDE HS ZS44-ZS56
- FRAME COLOR: many colors are available. Someone has a surcharge
- DETAILS COLOR: Black Anodizing is the standard color for Cnc parts. Other colors are available with surchage
- DECALS COLOR: there are some Std decals colors you can choose or we can do custom following your request
- SHOCK: RS DELUXE SELECT+ 230X60MM
- REAR TRAVEL: 150mm
- FORK: RS LYRIC SELECT+ 29" 160MM 110X15 Boost
- WHEELS: PMP XL27 29" | 27mm rims width | 110x15F | 148x12R \ Sram XD
- FRONT TIRE: MAXXIS DHF 29X2.3 EXO TR
- REAR TIRE: MAXXIS DHR 29X2.3 EXO TR
- BRAKES: SRAM G2 RSC - Rotor Centerline | 180/180
- SHIFTER: SRAM GX Eagle Trigger 1x12s
- REAR DER.: SRAM GX Eagle 12s | X-actuation | Long cage
- CRANKSET: SRAM GX Eagle Boost Dub | 170mm/175mm | 32T
- BB: SRAM DUB BSA 68/73 mm
- CASSETTE: SRAM X-Glide 1275 Black 12s | 10-50T
- CHAIN: SRAM GX 12s | Power Lock
- STEM: TRUVATIV Descendant stem | 50mm | 31.8mm
- HANDLEBAR: TRUVATIV Descendant Riser Bar | 760mm | rise 20mm | 31.8mm
- GRIPS: MDE Lock-on Piramid
- SEATPOST: SWITCH SWR150/170mm
- SADDLE: WTB SILVERADO PRO
- PEDALS: NONE
- WEIGHT: 13.2 kg
- STARTING PRICE: 3890.00€
YOU WILL DO THE BALANCE WHEN YOUR ORDER WILL BE READY TO BE SHIPPED
A' LA CARTE
WE CAN FOLLOW YOUR REQUEST. SEND US THE LIST OF COMPONETS YOU WOULD LIKE TO GET ON YOUR DREAM BIKE. WE WILL SEND YOU A QUOTATION AND WE WILL DISCUSS WITH YOU TO FIX THE BEST OPTIONS FOR YOUR NEEDS. CONTACT US: info@mdebikes.com
FAQ
Do you have any questions? Click here to see answers to frequently asked questions
This varies greatly depending on tire make and model, but 29×2.4″ is generally the max you’d want in there. Some 2.5″ tires will be fine as well, but not all. We tested for asample the Maxxis Minion DHf 2 29×2.5.
The Damper is compatible with 27.5x 2.8″ tires (with +14mm dropouts). Also Damper could fit with the combo 29 front and 27.5 rear with +0.0 dropouts and in this case the max size could fit is 27.5×2.6″
Yes, the frame is delivered with a ISCG 05 tab and you can apply it if you need. The frame has a special interlocking that allow you to fix the tab in the right position. This is fixed by screwing the bottom bracket cap. Without any spacers the BB shell lenght is 71.5mm: so if you don’t use the ISCG Tab you have to put anyway the round spacer (also supplied with the frame) in order to cover the interlock and get the right (73mm) length.
With a proper boost chainring (52mm chainline), the Damper will accept a 36t chainring or smaller.
Our geometry is based on a 160mm 29″ fork with a 51 or 46mm offset. 150mm fork could also fit. We wouldn’t recommend less travel than that, as the BB will get a bit low. 170mm is fine if that’s your preference.
You can found Damper’s suspension curves diagrams to this link.
